012520PW200

Active

Essentra Access Solutions

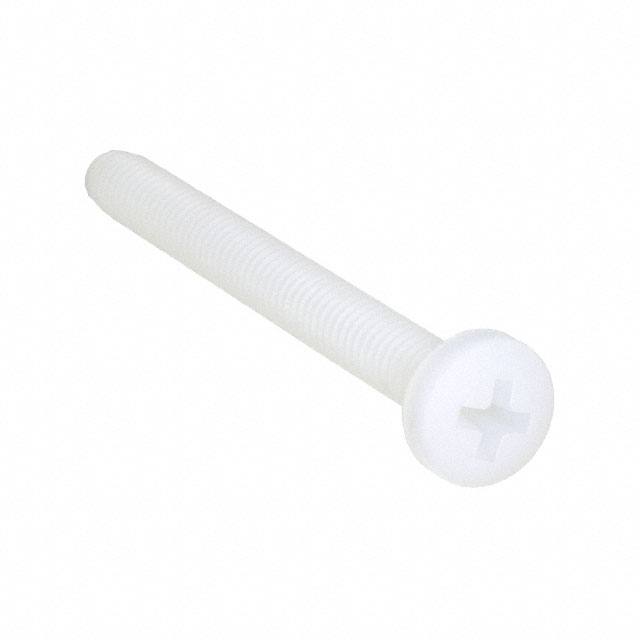

PAN PHILLIPS SCREW 1/4-20 THREAD

Search across all available documentation for this part.

Active

Essentra Access Solutions

PAN PHILLIPS SCREW 1/4-20 THREAD

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Length - Overall	Length - Overall	Head Height	Head Height	Type	Material	Screw Head Type	Length - Below Head	Length - Below Head	Length - Below Head	Drive Type	Head Diameter [diameter]	Head Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head
Essentra Access Solutions 012520PW037	1/4"-20	14.55 mm	0.573 "	0.198 "	5.03 mm	Machine Screw	Nylon	Pan Head	0.375 "	9.53 mm	0.375 "	Phillips
Essentra Access Solutions 012520PW200	1/4"-20			0.198 "	5.03 mm	Machine Screw	Nylon	Pan Head				Phillips
Essentra Access Solutions 012520PW025	1/4"-20			0.198 "	5.03 mm	Machine Screw	Nylon	Pan Head	0.25 in	0.25 in	6.35 mm	Phillips	12.26 mm	0.483 in	11.38 mm	0.448 in
Essentra Access Solutions 012520PW250	1/4"-20			0.198 "	5.03 mm	Machine Screw	Nylon	Pan Head				Phillips	12.26 mm	0.483 in			63.5 mm	2.5 in
Essentra Access Solutions 012520PW150	1/4"-20			0.198 "	5.03 mm	Machine Screw	Nylon	Pan Head			38.1 mm	Phillips						1.5 in
Essentra Access Solutions 012520PW050	1/4"-20			0.198 "	5.03 mm		Nylon	Pan Head	0.5 in		12.7 mm	Phillips	12.27 mm	0.483 in	17.73 mm	0.698 in			1/2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1/4"-20 Pan Head Machine Screw Phillips Drive Nylon
