0029110023
ActiveMolex

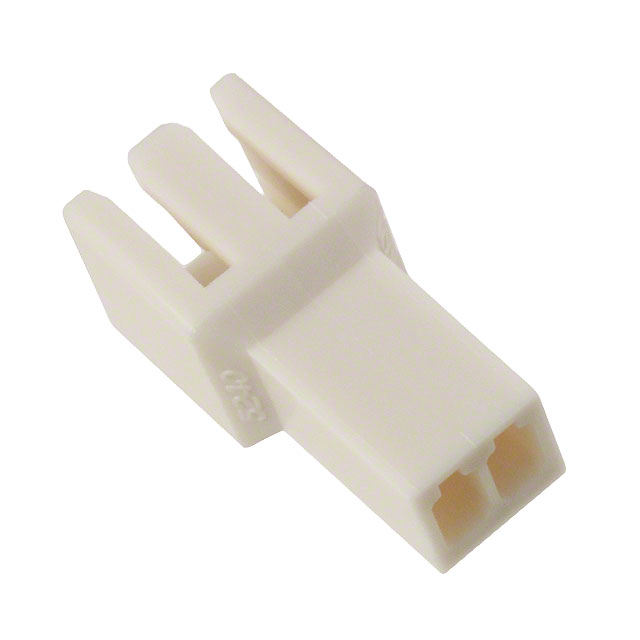

CONN PLUG HSG 2POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
0029110023
ActiveMolex
CONN PLUG HSG 2POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0029110023 |
|---|---|
| Color | Ivory |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
002911 Series
| Part | Fastening Type | Note | Pitch [x] | Pitch [x] | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Connector Type | Contact Type | Color | Contact Termination | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Latch Lock/Eject Hooks | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | ||
Molex | Friction Lock | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | Free Hanging (In-Line) | |
Molex | ||||||||||||||
Molex | Latch Lock/Eject Hooks | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | 2 | |
Molex | Latch Lock/Eject Hooks | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | 11 | |
Molex | Latch Lock/Eject Hooks | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | 12 | |
Molex | Friction Lock | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | Free Hanging (In-Line) | 2 |
Molex | Friction Lock | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | Free Hanging (In-Line) | 7 |
Molex | Friction Lock | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | Free Hanging (In-Line) | 6 |
Molex | Friction Lock | Contacts Not Included | 0.098 in | 2.5 mm | 1 | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Plug | Male Pin | Ivory | Crimp | Free Hanging (In-Line) | 12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.24 | |||
| 1000 | $ 0.20 | |||
Description
General part information
002911 Series
2 Rectangular Connectors - Housings Plug Ivory 0.098" (2.50mm)
Documents
Technical documentation and resources
No documents available
