0029110033

Active

Molex

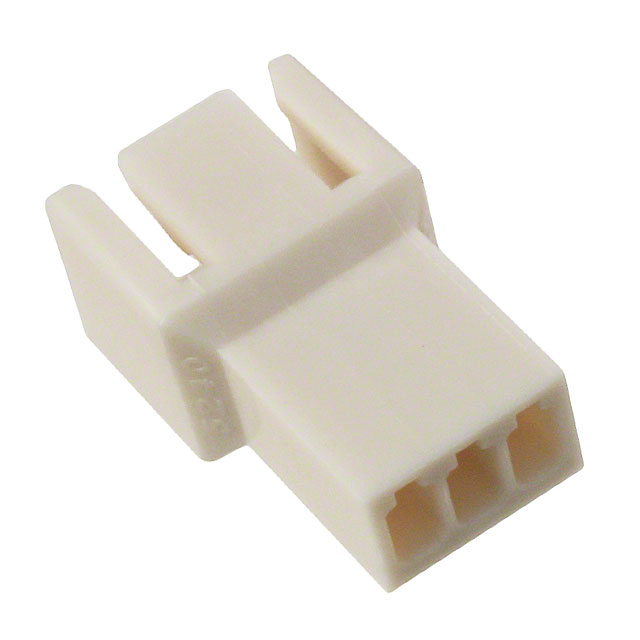

CONN PLUG HSG 3POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

0029110033

Active

Molex

CONN PLUG HSG 3POS 2.50MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0029110033

Color	Ivory
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

002911 Series

Part	Fastening Type	Note	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Connector Type	Contact Type	Color	Contact Termination	Mounting Type	Number of Positions
Molex 0029110052	Latch Lock/Eject Hooks	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp
Molex 0029110033	Friction Lock	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp	Free Hanging (In-Line)
Molex 0029110143
Molex 0029110022	Latch Lock/Eject Hooks	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp		2
Molex 0029110112	Latch Lock/Eject Hooks	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp		11
Molex 0029110122	Latch Lock/Eject Hooks	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp		12
Molex 0029110023	Friction Lock	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp	Free Hanging (In-Line)	2
Molex 0029110073	Friction Lock	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp	Free Hanging (In-Line)	7
Molex 0029110063	Friction Lock	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp	Free Hanging (In-Line)	6
Molex 0029110123	Friction Lock	Contacts Not Included	0.098 in	2.5 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Plug	Male Pin	Ivory	Crimp	Free Hanging (In-Line)	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.35
		100	$ 0.27
		1000	$ 0.23

Description

General part information

002911 Series

3 Rectangular Connectors - Housings Plug Ivory 0.098" (2.50mm)
