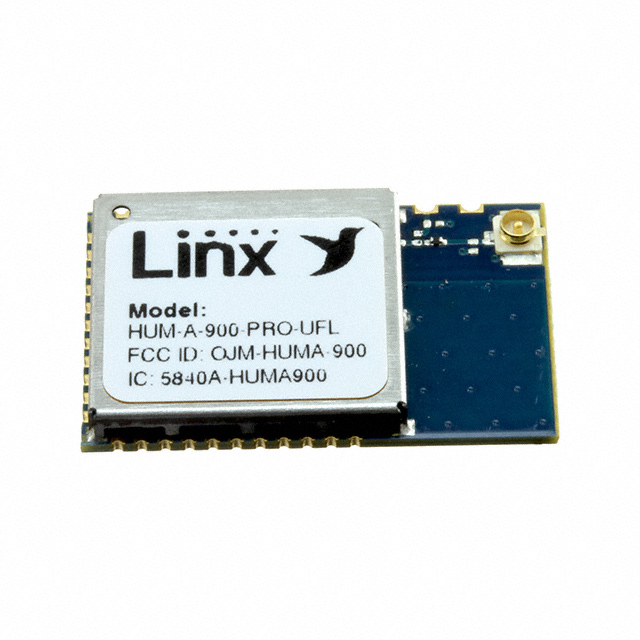

HUM-A-900-PRO-UFL
ActiveTE Connectivity Linx
RF TXRX MOD ISM<1GHZU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
HUM-A-900-PRO-UFL
ActiveTE Connectivity Linx
RF TXRX MOD ISM<1GHZU.FL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HUM-A-900-PRO-UFL |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 39 mA |
| Current - Transmitting [Max] | 380 mA |
| Current - Transmitting [Min] | 260 mA |
| Data Rate | 115.2 kbps |
| Frequency [Max] | 928 MHz |
| Frequency [Min] | 902 MHz |
| Modulation | FHSS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 44-SMD Module |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -108 dBm |
| Serial Interfaces | UART |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 29.23 | |
Description
General part information
HUM-A-900 Series
General ISM < 1GHz Proprietary Transceiver Module 902MHz ~ 928MHz Antenna Not Included, U.FL Surface Mount
