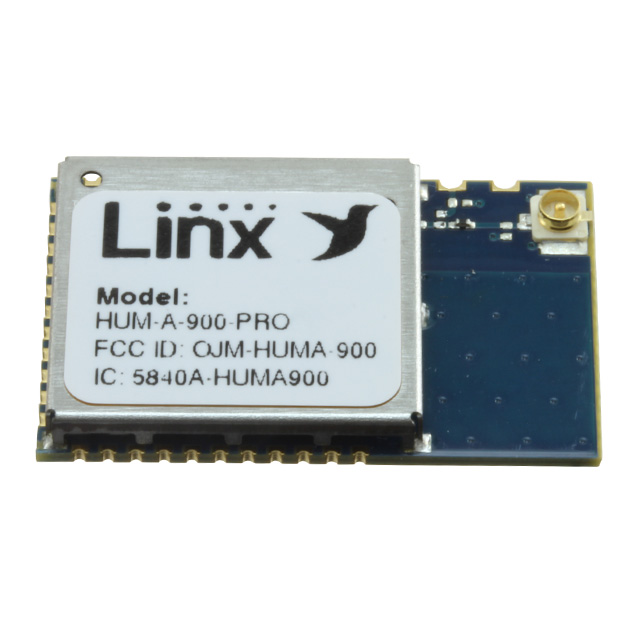

HUM-A-900-PRO-CAS

Active

TE Connectivity Linx

RF TXRX MOD ISM<1GHZ CAST SMD

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF TXRX MOD ISM<1GHZ CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	HUM-A-900-PRO-CAS

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	39 mA
Current - Transmitting [Max]	380 mA
Current - Transmitting [Min]	260 mA
Data Rate	153.6 kbps
Frequency [Max]	928 MHz
Frequency [Min]	902 MHz
Modulation	FHSS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	44-SMD Module
RF Family/Standard	General ISM < 1GHz
Sensitivity	-108 dBm
Serial Interfaces	UART
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

Part	Sensitivity	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting [Max]	Current - Transmitting [Min]	Modulation	Package / Case	Current - Receiving	Antenna Type	Frequency [Min]	Frequency [Max]	RF Family/Standard	Serial Interfaces
TE Connectivity Linx HUM-A-900-PRO-CAS	-108 dBm	2.7 V	3.6 V	153.6 kbps	Surface Mount	85 °C	-40 °C	380 mA	260 mA	FHSS	44-SMD Module	39 mA	Antenna Not Included Castellation	902 MHz	928 MHz	General ISM < 1GHz	UART
TE Connectivity Linx HUM-A-900-PRO-UFL	-108 dBm	2.7 V	3.6 V	115.2 kbps	Surface Mount	85 °C	-40 °C	380 mA	260 mA	FHSS	44-SMD Module	39 mA	Antenna Not Included U.FL	902 MHz	928 MHz	General ISM < 1GHz	UART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.36

General part information

General ISM < 1GHz Proprietary Transceiver Module 902MHz ~ 928MHz Antenna Not Included, Castellation Surface Mount

Technical documentation and resources
