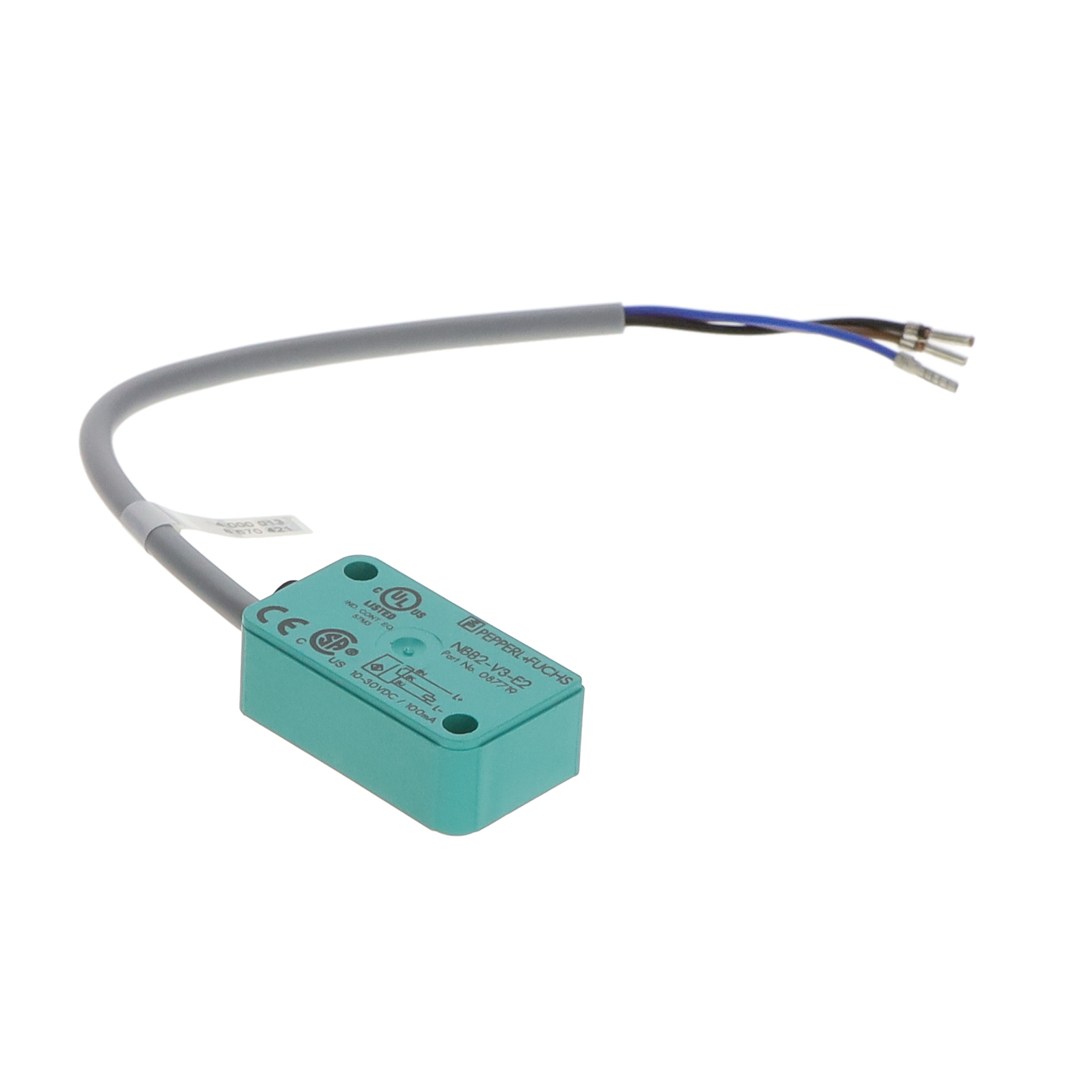

NBB2-V3-E2
ActivePEPPERL+FUCHS
INDUCTIVE SEN 2MM PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NBB2-V3-E2
ActivePEPPERL+FUCHS
INDUCTIVE SEN 2MM PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NBB2-V3-E2 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Sensing Distance | 0.079 in |
| Sensing Distance | 2 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 93.68 | |
| 5 | $ 79.02 | |||
| 10 | $ 73.44 | |||
| 25 | $ 66.66 | |||
| 50 | $ 61.96 | |||
| 100 | $ 57.59 | |||
Description
General part information
NBB2-V3 Series
INDUCTIVE SEN 2MM PNP
