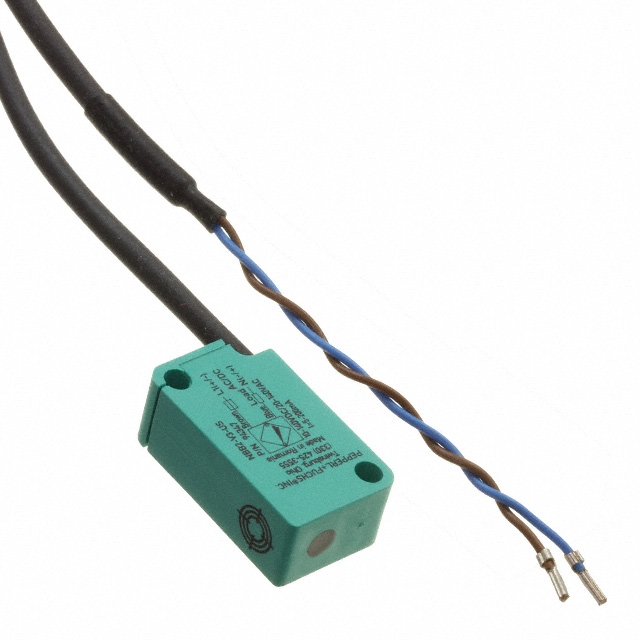

NBB2-V3-US

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NO

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NO

Technical Specifications

Parameters and characteristics for this part

Specification	NBB2-V3-US

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	SCR-NO, 2-Wire
Package / Case	Module
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	140 V
Voltage - Supply [Min]	10 VDC

Part	Indicator [custom]	Material - Body	Package / Case	Sensor Type	Shielding	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Output Type	Termination Style
PEPPERL+FUCHS NBB2-V3-US	LED	Polybutylene Terephthalate (PBT)	Module	Inductive	Unshielded	0.079 in	2 mm	70 °C	-25 °C	140 V	10 VDC	IP67	SCR-NO 2-Wire	Cable
PEPPERL+FUCHS NBB2-V3-E2	LED	Polybutylene Terephthalate (PBT)	Module	Inductive	Unshielded	0.079 in	2 mm	70 °C	-25 °C	30 VDC	10 VDC	IP67	PNP-NO 3-Wire	Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 2MM NO

Technical documentation and resources
