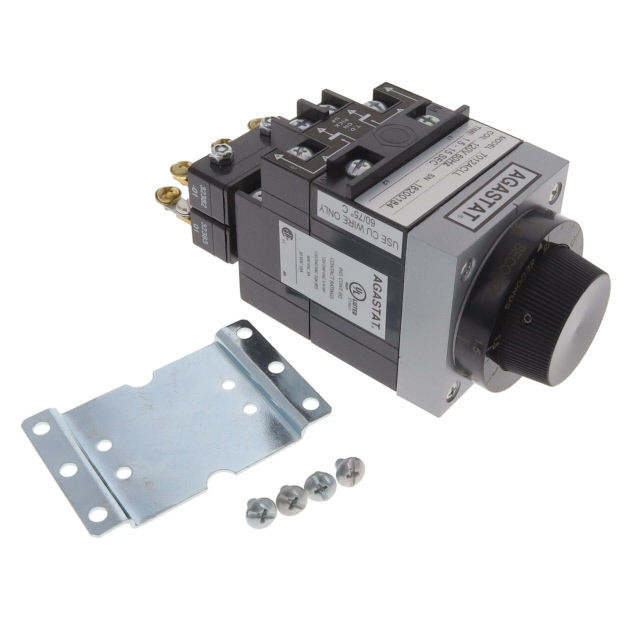

7012ACLL
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY TIME DELAY 15SEC 10A 240V
Deep-Dive with AI
Search across all available documentation for this part.
Documents7000 AGASTAT Series Instr Sheet
7012ACLL
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY TIME DELAY 15SEC 10A 240V
Deep-Dive with AI
Documents7000 AGASTAT Series Instr Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7012ACLL |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 10 A, 240 VAC |
| Delay Time [Max] | 15 Sec |
| Delay Time [Min] | 1.5 Sec |
| Function | On-Delay |
| Relay Type | Mechanical Relay |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 120 VAC |
1423157 Series
| Part | Contact Rating @ Voltage | Circuit | Voltage - Supply | Timing Initiate Method | Delay Time [Min] | Delay Time [Max] | Relay Type | Termination Style | Function | Timing Adjustment Method |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 120 VAC | Input Voltage | 1 Sec | 300 Sec | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 240 VAC | Input Voltage | 1 Min | 10 Min | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 120 VAC | Input Voltage | 20 Sec | 200 Sec | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 120 VAC | Input Voltage | 5 Sec | 50 Sec | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 120 VAC | Input Voltage | 5 Sec | 50 Sec | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 240 VAC | Input Voltage | 1 Min | 10 Min | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 120 VAC | Input Voltage | 1.5 Sec | 15 Sec | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 480 VAC | Input Voltage | 0.5 Sec | 5 Sec | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
TE Connectivity Aerospace, Defense and Marine | ||||||||||
TE Connectivity Aerospace, Defense and Marine | 10 A 240 VAC | DPDT (2 Form C) | 240 VAC | Input Voltage | 1 Sec | 300 Sec | Mechanical Relay | Screw Terminal | On-Delay | Hand Dial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 6 | $ 824.74 | |
Description
General part information
1423157 Series
On-Delay Time Delay Relay DPDT (2 Form C) 1.5 Sec ~ 15 Sec Delay 10A @ 240VAC Panel Mount
