7012ADL

Active

TE Connectivity Aerospace, Defense and Marine

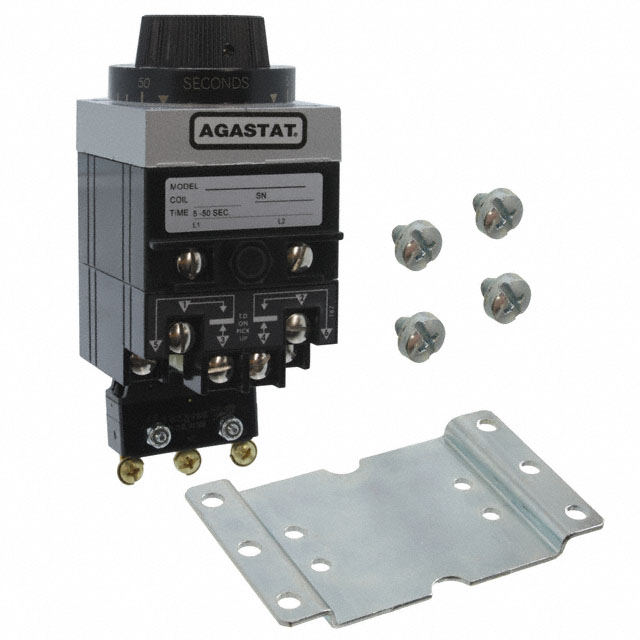

RELAY TIME DELAY 50SEC 10A 240V

Deep-Dive with AI

Search across all available documentation for this part.

Documents7000 AGASTAT Series Instr Sheet

7012ADL

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 50SEC 10A 240V

Deep-Dive with AI

Documents7000 AGASTAT Series Instr Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7012ADL

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	10 A, 240 VAC
Delay Time [Max]	50 Sec
Delay Time [Min]	5 Sec
Function	On-Delay
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

1423157 Series

Part	Contact Rating @ Voltage	Circuit	Voltage - Supply	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Relay Type	Termination Style	Function	Timing Adjustment Method
TE Connectivity Aerospace, Defense and Marine 5-1423157-6	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	1 Sec	300 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012BF	10 A 240 VAC	DPDT (2 Form C)	240 VAC	Input Voltage	1 Min	10 Min	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012AE	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	20 Sec	200 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012ADL	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	5 Sec	50 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012AD	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	5 Sec	50 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012BFX	10 A 240 VAC	DPDT (2 Form C)	240 VAC	Input Voltage	1 Min	10 Min	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012ACLL	10 A 240 VAC	DPDT (2 Form C)	120 VAC	Input Voltage	1.5 Sec	15 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 7012CB	10 A 240 VAC	DPDT (2 Form C)	480 VAC	Input Voltage	0.5 Sec	5 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial
TE Connectivity Aerospace, Defense and Marine 4-1423157-5
TE Connectivity Aerospace, Defense and Marine 7012BKX	10 A 240 VAC	DPDT (2 Form C)	240 VAC	Input Voltage	1 Sec	300 Sec	Mechanical Relay	Screw Terminal	On-Delay	Hand Dial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 694.63

Description

General part information

1423157 Series

On-Delay Time Delay Relay DPDT (2 Form C) 5 Sec ~ 50 Sec Delay 10A @ 240VAC Panel Mount

Documents

Technical documentation and resources

7000 AGASTAT Series Instr Sheet

Datasheet
