19300320272

Active

HARTING Technology Group

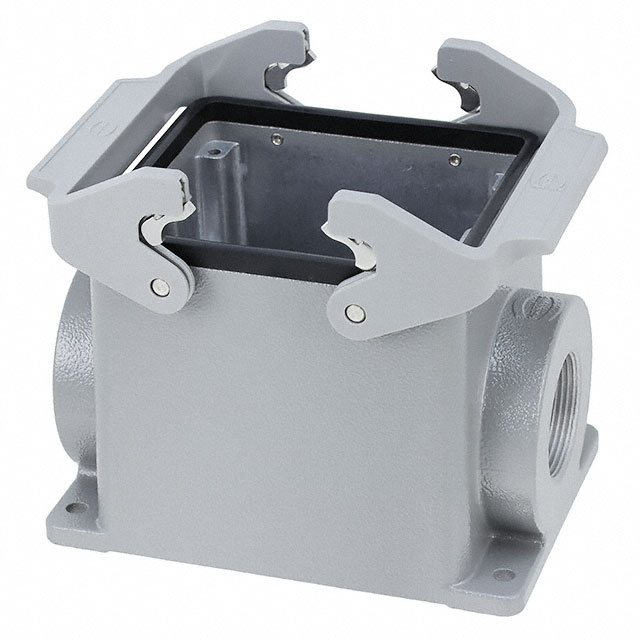

CONN BASE SIDE ENTRY SZ32B M32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19300320272 Prod Declaration Cert

19300320272

Active

HARTING Technology Group

CONN BASE SIDE ENTRY SZ32B M32

Deep-Dive with AI

DocumentsDatasheet 19300320272 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300320272

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 B
Size / Dimension [x]	125 mm
Size / Dimension [x]	4.921 in
Size / Dimension [y]	87 mm
Size / Dimension [y]	3.425 in
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.543 in
Style	Side Entry
Thread Size	M32

19300320 Series

Part	Ingress Protection	Thread Size	Connector Type	Size	Housing Material	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Style	Lock Location	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Features
HARTING Technology Group 19300320529	IP65 - Dust Tight Water Resistant	M50	Hood	32 B	Aluminum Die Cast	94 mm	3.701 "	3.248 in	94 mm	82.5 mm	3.701 in	Side Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated
HARTING Technology Group 19300320272	IP65 - Dust Tight Water Resistant	M32	Base - Box Mount	32 B	Aluminum Die Cast	90 mm	4.921 in	3.425 in	125 mm	87 mm	3.543 in	Side Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated	Feed Through
HARTING Technology Group 19300320527	IP65 - Dust Tight Water Resistant	M32	Hood	32 B	Aluminum Die Cast	94 mm	3.701 "	3.248 in	94 mm	82.5 mm	3.701 in	Side Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated
HARTING Technology Group 19300320232	IP65 - Dust Tight Water Resistant	M32	Base - Box Mount	32 B	Aluminum Die Cast	90.1 mm	4.921 in	3.425 in	125 mm	87 mm	3.547 in	Side Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated	Feed Through
HARTING Technology Group 19300320428	IP65 - Dust Tight Water Resistant		Hood	32 B	Aluminum Die Cast	94 mm	3.701 "	3.248 in	94 mm	82.5 mm	3.701 in	Top Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated
HARTING Technology Group 19300320427	IP65 - Dust Tight Water Resistant	M32	Hood	32 B	Aluminum Die Cast	94 mm	3.701 "	3.248 in	94 mm	82.5 mm	3.701 in	Top Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 137.82

Description

General part information

19300320 Series

Base - Box Mount Connector Side Entry M32 32B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

Datasheet

19300320272 Prod Declaration Cert

Datasheet
