19300320427

Active

HARTING Technology Group

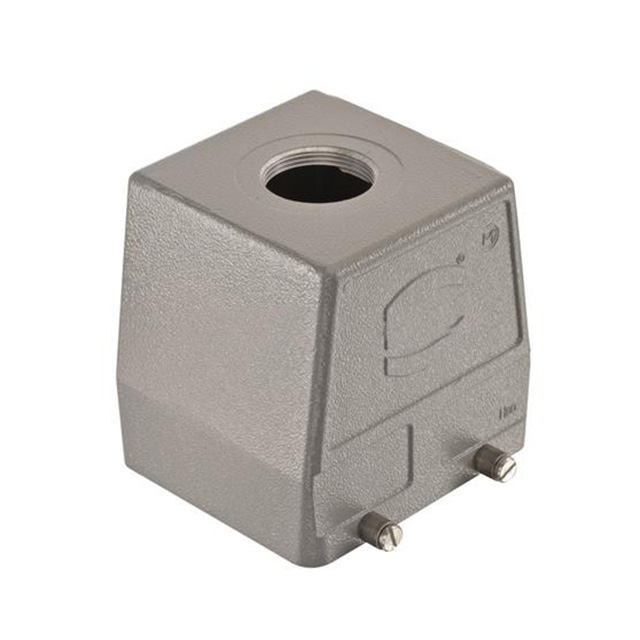

HEAVY DUTY CONNECTOR, M32 TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

Documents19300320427 Prod Declaration Cert Datasheet +2

19300320427

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M32 TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

Documents19300320427 Prod Declaration Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300320427

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 B
Size / Dimension [x]	3.701 "
Size / Dimension [x]	94 mm
Size / Dimension [y]	3.248 in
Size / Dimension [y]	82.5 mm
Size / Dimension [z]	94 mm
Size / Dimension [z]	3.701 in
Style	Top Entry
Thread Size	M32

19300320 Series

Part	Ingress Protection	Thread Size	Connector Type	Size	Housing Material	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Style	Lock Location	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Features
HARTING Technology Group 19300320529	IP65 - Dust Tight Water Resistant	M50	Hood	32 B	Aluminum Die Cast	94 mm	3.701 "	3.248 in	94 mm	82.5 mm	3.701 in	Side Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated
HARTING Technology Group 19300320272	IP65 - Dust Tight Water Resistant	M32	Base - Box Mount	32 B	Aluminum Die Cast	90 mm	4.921 in	3.425 in	125 mm	87 mm	3.543 in	Side Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated	Feed Through
HARTING Technology Group 19300320527	IP65 - Dust Tight Water Resistant	M32	Hood	32 B	Aluminum Die Cast	94 mm	3.701 "	3.248 in	94 mm	82.5 mm	3.701 in	Side Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated
HARTING Technology Group 19300320232	IP65 - Dust Tight Water Resistant	M32	Base - Box Mount	32 B	Aluminum Die Cast	90.1 mm	4.921 in	3.425 in	125 mm	87 mm	3.547 in	Side Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated	Feed Through
HARTING Technology Group 19300320428	IP65 - Dust Tight Water Resistant		Hood	32 B	Aluminum Die Cast	94 mm	3.701 "	3.248 in	94 mm	82.5 mm	3.701 in	Top Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated
HARTING Technology Group 19300320427	IP65 - Dust Tight Water Resistant	M32	Hood	32 B	Aluminum Die Cast	94 mm	3.701 "	3.248 in	94 mm	82.5 mm	3.701 in	Top Entry	Locking Clip (2) on Base Bottom	Gray	125 °C	-40 °C	Powder Coated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 86.16
		10	$ 73.24
		25	$ 68.65
		50	$ 65.38
		100	$ 62.27
Newark	Each	1	$ 88.08
		10	$ 83.13
		25	$ 80.66
		50	$ 74.72
		100	$ 70.76

Description

General part information

19300320 Series

Hood Connector Top Entry M32 32B IP65 - Dust Tight, Water Resistant
