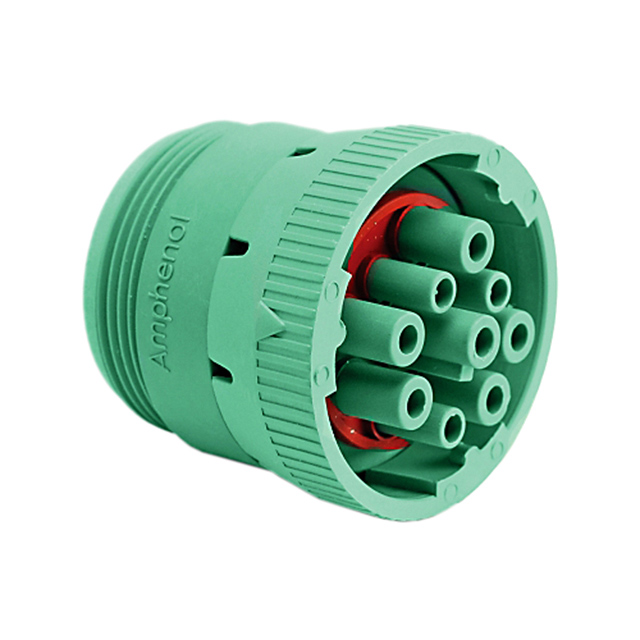

AHD16-9-1939S80
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG FMALE 9POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
AHD16-9-1939S80
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG FMALE 9POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHD16-9-1939S80 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Green |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shielding | Unshielded |
| Type | For Female Sockets |
AHD16 Series
| Part | Connector Type | Orientation | Fastening Type | Note | Number of Positions | Contact Size | Shielding | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Housing Color | Type | Contact Shape | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Plug Housing | Keyed | Bayonet Lock | Contacts Not Included | 9 | 16 | Unshielded | Crimp | -55 °C | 125 °C | IP67 - Dust Tight Waterproof | Green | For Female Sockets | Circular | Coupling Nut | Free Hanging (In-Line) |
Amphenol Sine Systems Corp | Plug Housing | Keyed | Push-Pull | Contacts Not Included | 6 | 12 | Unshielded | Crimp | -55 °C | 125 °C | IP67 - Dust Tight Waterproof | Gray | For Female Sockets | Circular | Free Hanging (In-Line) | |
Amphenol Sine Systems Corp | Plug Housing | Keyed | Bayonet Lock | Contacts Not Included | 9 | 16 | Unshielded | Crimp | -55 °C | 125 °C | IP67 - Dust Tight Waterproof | Gray | For Female Sockets | Circular | Coupling Nut | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.91 | |
| 10 | $ 10.56 | |||
| 25 | $ 10.15 | |||
| 50 | $ 9.74 | |||
| 100 | $ 9.20 | |||
| 250 | $ 8.39 | |||
| 500 | $ 7.85 | |||
| 1000 | $ 7.20 | |||
Description
General part information
AHD16 Series
9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
