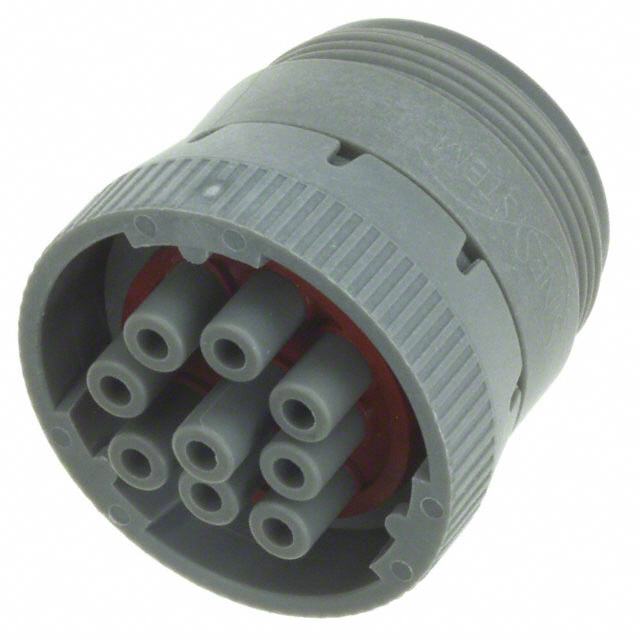

AHD16-9-96S
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG FMALE 9POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
AHD16-9-96S
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG FMALE 9POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHD16-9-96S |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.62 | |
| 10 | $ 6.61 | |||
| 25 | $ 5.97 | |||
| 50 | $ 5.53 | |||
| 100 | $ 5.14 | |||
| 250 | $ 4.67 | |||
| 500 | $ 4.36 | |||
| 1000 | $ 4.07 | |||
| 2500 | $ 3.79 | |||
Description
General part information
AHD16 Series
9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
