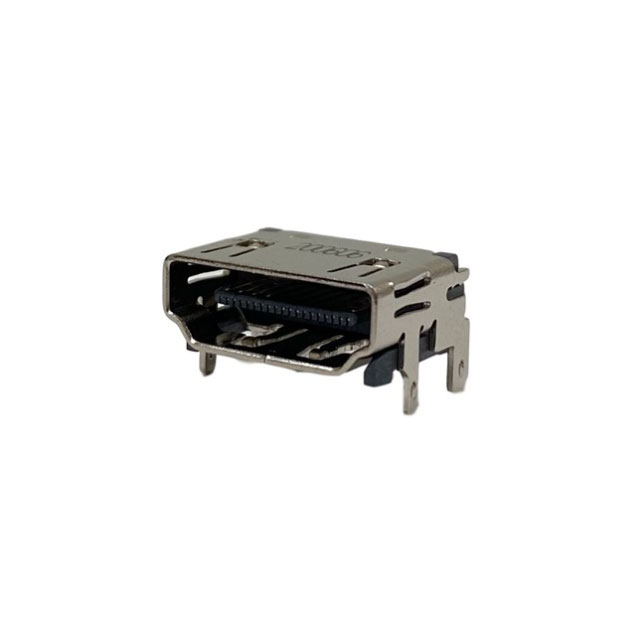

RAHHD19TR
ActiveSwitchcraft Inc.
HDMI TYPE A RECEPTACLE, HORIZONT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAHHD19TR
ActiveSwitchcraft Inc.
HDMI TYPE A RECEPTACLE, HORIZONT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAHHD19TR |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 5000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | HDMI 2.0 |
| Termination | Solder |
| Voltage - Rated | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.44 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| Digi-Reel® | 1 | $ 1.44 | ||
| 10 | $ 1.21 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| Tape & Reel (TR) | 350 | $ 0.99 | ||
| 700 | $ 0.89 | |||
| 1050 | $ 0.79 | |||
| 1750 | $ 0.74 | |||
| 2450 | $ 0.72 | |||
| 8750 | $ 0.66 | |||
Description
General part information
RAHHD1 Series
HDMI HDMI 2.0 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
Documents
Technical documentation and resources
