RAHHD19SFTR
ActiveSwitchcraft Inc.

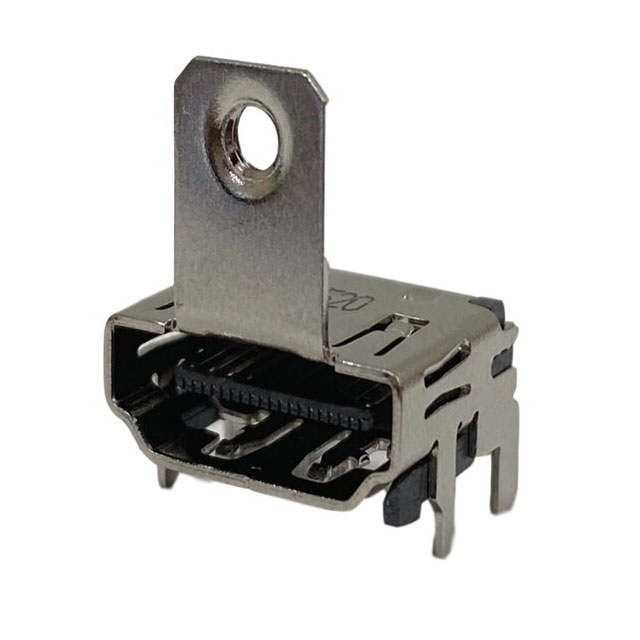

HDMI TYPE A RECEPTACLE, HORIZONT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAHHD19SFTR
ActiveSwitchcraft Inc.
HDMI TYPE A RECEPTACLE, HORIZONT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAHHD19SFTR |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 5000 |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | HDMI 2.0 |
| Termination | Solder |
| Voltage - Rated | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.50 | |
| 10 | $ 1.28 | |||
| 25 | $ 1.20 | |||
| 50 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 1.50 | ||
| 10 | $ 1.28 | |||
| 25 | $ 1.20 | |||
| 50 | $ 1.14 | |||
| Tape & Reel (TR) | 150 | $ 1.05 | ||
| 300 | $ 1.00 | |||
| 450 | $ 0.98 | |||
| 750 | $ 0.94 | |||
| 1050 | $ 0.92 | |||
| 1500 | $ 0.90 | |||
| 3750 | $ 0.84 | |||
| 7500 | $ 0.80 | |||
| 15000 | $ 0.63 | |||
Description
General part information
RAHHD1 Series
HDMI HDMI 2.0 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
