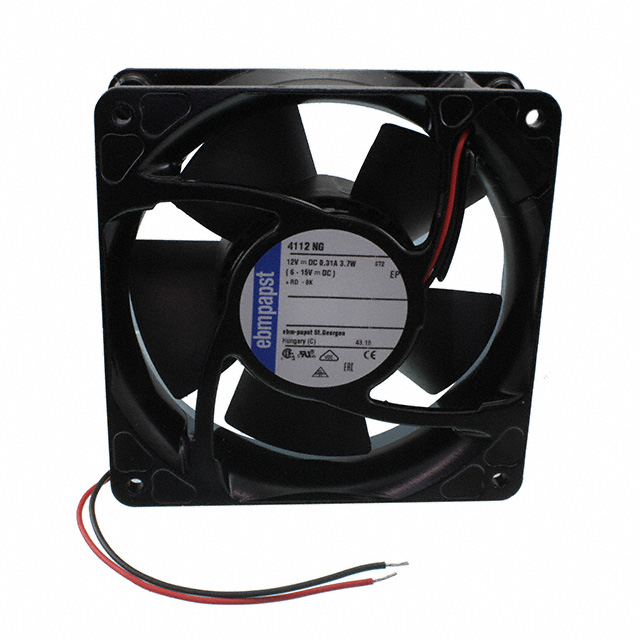

4112NG

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	4112NG

Bearing Type	Sleeve
Fan Type	Tubeaxial
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	14 V
Voltage Range [Min]	9 V
Width [y]	38 mm

Part	RPM	Voltage Range [Min]	Voltage Range [Max]	Termination	Material - Blade	Weight	Weight	Voltage - Rated	Material - Frame	Noise	Bearing Type	Lifetime @ Temp.	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Fan Type	Air Flow	Air Flow
ebm-papst Inc. 4112NH3	6000 RPM	9 V	15 V	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	0.86 lb	390.09 g	12 VDC	Aluminum	65 dB	Ball	65000 Hrs	21.6 W	-20 °C	-20 C	65 °C	65 °C	CE	119 mm	119 mm	38 mm	Tubeaxial
ebm-papst Inc. 4112NG		9 V	14 V	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	Aluminum		Sleeve								119 mm	119 mm	38 mm	Tubeaxial
ebm-papst Inc. 4112NHH	5000 RPM	9 V	15 V	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	0.86 lb	390.09 g	12 VDC	Aluminum	60 dB(A)	Ball	70000 Hrs	15.5 W	-20 °C	-20 C	65 °C	65 °C	CE	119 mm	119 mm	38 mm	Tubeaxial	4.28 m³/min	152.9 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Sleeve 2 Wire Leads
