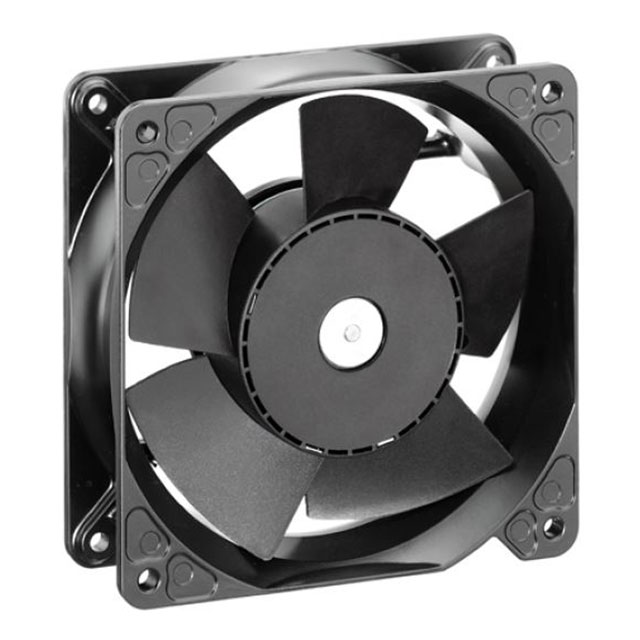

4112NH3

Active

ebm-papst Inc.

DC AXIAL FAN, 12 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 182.4 CFM

Search across all available documentation for this part.

Active

ebm-papst Inc.

DC AXIAL FAN, 12 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 182.4 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	4112NH3

Approval Agency	CE
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	65 dB
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	21.6 W
RPM	6000 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	9 V
Weight	0.86 lb
Weight	390.09 g
Width [y]	38 mm

Part	RPM	Voltage Range [Min]	Voltage Range [Max]	Termination	Material - Blade	Weight	Weight	Voltage - Rated	Material - Frame	Noise	Bearing Type	Lifetime @ Temp.	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Fan Type	Air Flow	Air Flow
ebm-papst Inc. 4112NH3	6000 RPM	9 V	15 V	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	0.86 lb	390.09 g	12 VDC	Aluminum	65 dB	Ball	65000 Hrs	21.6 W	-20 °C	-20 C	65 °C	65 °C	CE	119 mm	119 mm	38 mm	Tubeaxial
ebm-papst Inc. 4112NG		9 V	14 V	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	Aluminum		Sleeve								119 mm	119 mm	38 mm	Tubeaxial
ebm-papst Inc. 4112NHH	5000 RPM	9 V	15 V	2 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	0.86 lb	390.09 g	12 VDC	Aluminum	60 dB(A)	Ball	70000 Hrs	15.5 W	-20 °C	-20 C	65 °C	65 °C	CE	119 mm	119 mm	38 mm	Tubeaxial	4.28 m³/min	152.9 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 64.44
Newark	Each	1	$ 72.03

General part information

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 182.4 CFM (5.11mł/min) 2 Wire Leads
