2980021

Active

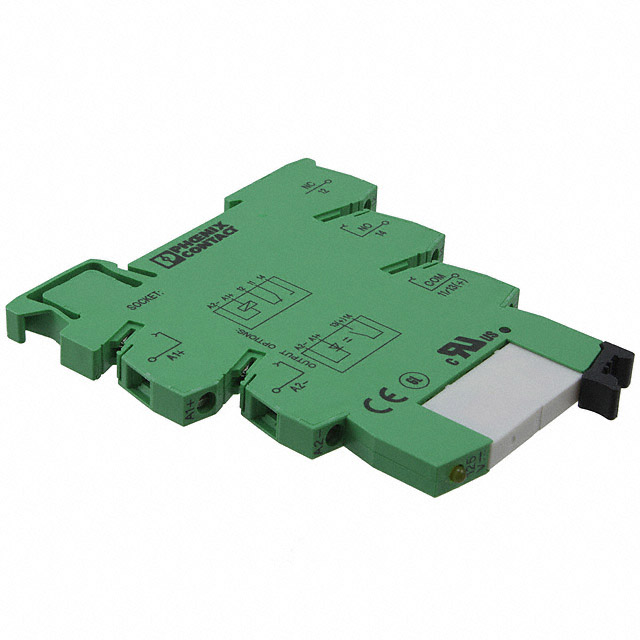

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 125V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	2980021

Approval Agency	UKCA, CE
Coil Current	3 mA
Coil Resistance	41.67 kOhms
Coil Type	Non Latching
Coil Voltage	125 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Contact Rating (Current)	Features	Relay Type	Coil Resistance	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Coil Type	Coil Voltage	Mounting Type	Switching Voltage	Approval Agency	Contact Form	Contact Material
Phoenix Contact 2980021	6 A	Lighted Indicator Socket Included	General Purpose	41.67 kOhms	3 mA	-25 °C	60 °C	Screw Terminal	Non Latching	125 VDC	DIN Rail	250 VAC 250 VDC	CE UKCA	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)
Phoenix Contact 2980034	50 mA	Lighted Indicator Socket Included	General Purpose		3 mA	-25 °C	60 °C	Screw Terminal	Non Latching	125 VDC	DIN Rail	30 VAC 36 VDC	cULus DNV EAC UL	SPDT (1 Form C)	Gold (Au) Silver (Ag)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 125VDC Coil DIN Rail
