2980034

Active

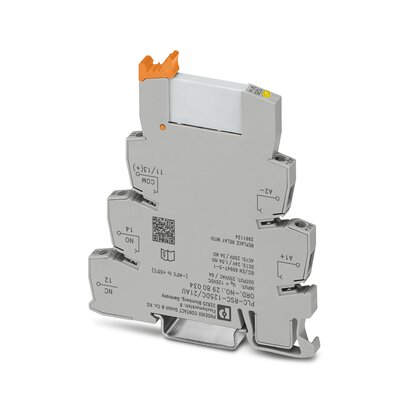

Phoenix Contact

RELAY GEN PURPOSE SPDT 50MA 125V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 50MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	2980034

Approval Agency	cULus, DNV, UL, EAC
Coil Current	3 mA
Coil Type	Non Latching
Coil Voltage	125 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	50 mA
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Switching Voltage	36 VDC, 30 VAC
Termination Style	Screw Terminal

Part	Contact Rating (Current)	Features	Relay Type	Coil Resistance	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Coil Type	Coil Voltage	Mounting Type	Switching Voltage	Approval Agency	Contact Form	Contact Material
Phoenix Contact 2980021	6 A	Lighted Indicator Socket Included	General Purpose	41.67 kOhms	3 mA	-25 °C	60 °C	Screw Terminal	Non Latching	125 VDC	DIN Rail	250 VAC 250 VDC	CE UKCA	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)
Phoenix Contact 2980034	50 mA	Lighted Indicator Socket Included	General Purpose		3 mA	-25 °C	60 °C	Screw Terminal	Non Latching	125 VDC	DIN Rail	30 VAC 36 VDC	cULus DNV EAC UL	SPDT (1 Form C)	Gold (Au) Silver (Ag)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.70

General part information

General Purpose Relay SPDT (1 Form C) DIN Rail
