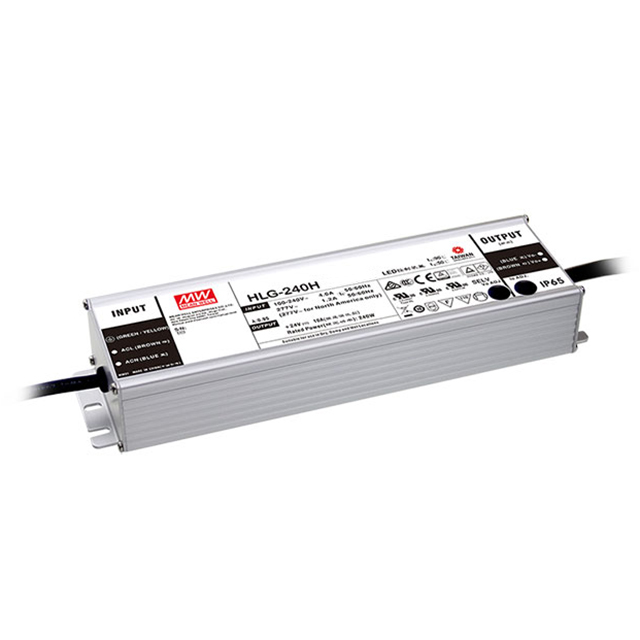

HLG-240H-42A
ActiveMEAN WELL USA Inc.
LED DVR CC/CV AC/DC 39-45V 5.72A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLG-240H-42A
ActiveMEAN WELL USA Inc.
LED DVR CC/CV AC/DC 39-45V 5.72A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLG-240H-42A |
|---|---|
| Approval Agency | RCM, cURus, CB, CE, TUV, CCC, PSE |
| Current - Output (Max) [Max] | 5.72 A |
| Efficiency | 92.5 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 240 W |
| Ratings | IP65 |
| Size / Dimension [x] | 220.2 mm |
| Size / Dimension [x] | 8.67 " |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [z] | 38.8 mm |
| Size / Dimension [z] | 1.53 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 45 V |
| Voltage - Output [Min] | 39 V |
HLG-240H Series
| Part | Dimming | Termination Style | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Topology | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Features | Approval Agency | Power (Watts) | Number of Outputs | Ratings | Voltage - Output [Max] | Voltage - Output [Min] | Voltage - Isolation | Efficiency | Current - Output (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | Analog PWM | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OTP OVP SCP | CB CCC CE cURus ENEC RCM | 250 W | 1 | IP67 | 119 V | 59 V | 3750 V | 93.5 % | 2.1 A | Chassis Mount | 90 °C | -40 °C | |
MEAN WELL USA Inc. | Analog PWM | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current Voltage | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OCP OTP OVP SCP | CB CCC CE cURus PSE RCM TUV | 241 W | 1 | IP67 | 36 V | 18 V | 3750 V | 92.5 % | 6.7 A | Chassis Mount | 90 °C | -40 °C | |
MEAN WELL USA Inc. | Analog PWM | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current Voltage | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OCP OTP OVP SCP | CB CCC CE cURus KC PSE RCM TUV | 240 W | 1 | IP65 | 3750 V | 93.5 % | 4.45 A | Chassis Mount | 90 °C | -40 °C | 54 V | ||
MEAN WELL USA Inc. | Analog PWM | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current Voltage | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OCP OTP OVP SCP | CB CCC CE cURus PSE RCM TUV | 240 W | 1 | IP67 | 48 V | 24 V | 3750 V | 93 % | 5 A | Chassis Mount | 90 °C | -40 °C | |
MEAN WELL USA Inc. | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current Voltage | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OCP OTP OVP SCP | CB CCC CE cURus EAC KC PSE RCM TUV | 192 W | 1 | IP65 | 3750 V | 90 % | 16 A | Chassis Mount | 90 °C | -40 °C | 12 V | |||
MEAN WELL USA Inc. | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OTP OVP SCP | CB CCC CE cURus ENEC RCM | 250 W | 1 | IP65 | 357 V | 178 V | 3750 V | 93.5 % | 700 mA | Chassis Mount | 90 °C | -40 °C | ||
MEAN WELL USA Inc. | Analog PWM | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current Voltage | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OCP OTP OVP SCP | CB CCC CE cURus PSE RCM TUV | 240 W | 1 | IP67 | 24 V | 12 V | 3750 V | 92.5 % | 10 A | Chassis Mount | 90 °C | -40 °C | |
MEAN WELL USA Inc. | Analog PWM | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current Voltage | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OCP OTP OVP SCP | CB CCC CE cURus PSE RCM TUV | 240 W | 1 | IP67 | 30 VDC | 15 V | 3750 V | 92.5 % | 8 A | Chassis Mount | 90 °C | -40 °C | |
MEAN WELL USA Inc. | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current Voltage | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OCP OTP OVP SCP | CB CCC CE cURus EAC KC PSE RCM TUV | 240 W | 1 | IP65 | 3750 V | 91.5 % | 12 A | Chassis Mount | 90 °C | -40 °C | 20 V | |||
MEAN WELL USA Inc. | Wire Leads | 305 VAC | 90 VAC | AC DC Converter | Constant Current Voltage | 38.8 mm | 220.2 mm | 68 mm | 2.68 " | 8.67 " | 1.53 " | OCP OTP OVP SCP | CB CCC CE cURus PSE RCM TUV | 240 W | 1 | IP65 | 45 V | 39 V | 3750 V | 92.5 % | 5.72 A | Chassis Mount | 90 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 90.72 | |
| 5 | $ 82.94 | |||
| 10 | $ 79.80 | |||
| 25 | $ 75.82 | |||
Description
General part information
HLG-240H Series
5.72A 39 ~ 45V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
