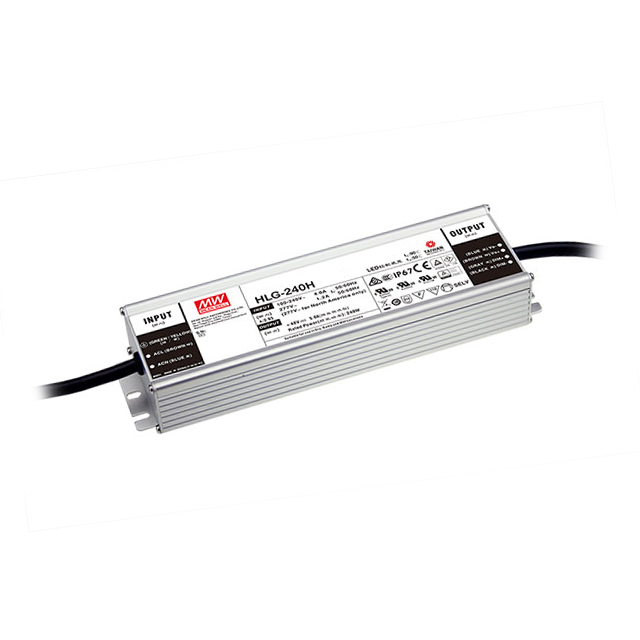

HLG-240H-30B

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 15-30V 8A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-240H-30B

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 15-30V 8A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-240H-30B

Approval Agency	RCM, cURus, CB, CE, TUV, CCC, PSE
Current - Output (Max) [Max]	8 A
Dimming	Analog, PWM
Efficiency	92.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	240 W
Ratings	IP67
Size / Dimension [x]	220.2 mm
Size / Dimension [x]	8.67 "
Size / Dimension [y]	68 mm
Size / Dimension [y]	2.68 "
Size / Dimension [z]	38.8 mm
Size / Dimension [z]	1.53 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	30 VDC
Voltage - Output [Min]	15 V

HLG-240H Series

Part	Dimming	Termination Style	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Topology	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Approval Agency	Power (Watts)	Number of Outputs	Ratings	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Isolation	Efficiency	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output
MEAN WELL USA Inc. HLG-240H-C2100B	Analog PWM	Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OTP OVP SCP	CB CCC CE cURus ENEC RCM	250 W	1	IP67	119 V	59 V	3750 V	93.5 %	2.1 A	Chassis Mount	90 °C	-40 °C
MEAN WELL USA Inc. HLG-240H-36B	Analog PWM	Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current Voltage	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV	241 W	1	IP67	36 V	18 V	3750 V	92.5 %	6.7 A	Chassis Mount	90 °C	-40 °C
MEAN WELL USA Inc. HLG-240H-54AB	Analog PWM	Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current Voltage	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OCP OTP OVP SCP	CB CCC CE cURus KC PSE RCM TUV	240 W	1	IP65			3750 V	93.5 %	4.45 A	Chassis Mount	90 °C	-40 °C	54 V
MEAN WELL USA Inc. HLG-240H-48B	Analog PWM	Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current Voltage	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV	240 W	1	IP67	48 V	24 V	3750 V	93 %	5 A	Chassis Mount	90 °C	-40 °C
MEAN WELL USA Inc. HLG-240H-12AB		Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current Voltage	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OCP OTP OVP SCP	CB CCC CE cURus EAC KC PSE RCM TUV	192 W	1	IP65			3750 V	90 %	16 A	Chassis Mount	90 °C	-40 °C	12 V
MEAN WELL USA Inc. HLG-240H-C700A		Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OTP OVP SCP	CB CCC CE cURus ENEC RCM	250 W	1	IP65	357 V	178 V	3750 V	93.5 %	700 mA	Chassis Mount	90 °C	-40 °C
MEAN WELL USA Inc. HLG-240H-24B	Analog PWM	Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current Voltage	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV	240 W	1	IP67	24 V	12 V	3750 V	92.5 %	10 A	Chassis Mount	90 °C	-40 °C
MEAN WELL USA Inc. HLG-240H-30B	Analog PWM	Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current Voltage	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV	240 W	1	IP67	30 VDC	15 V	3750 V	92.5 %	8 A	Chassis Mount	90 °C	-40 °C
MEAN WELL USA Inc. HLG-240H-20AB		Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current Voltage	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OCP OTP OVP SCP	CB CCC CE cURus EAC KC PSE RCM TUV	240 W	1	IP65			3750 V	91.5 %	12 A	Chassis Mount	90 °C	-40 °C	20 V
MEAN WELL USA Inc. HLG-240H-42A		Wire Leads	305 VAC	90 VAC	AC DC Converter	Constant Current Voltage	38.8 mm	220.2 mm	68 mm	2.68 "	8.67 "	1.53 "	OCP OTP OVP SCP	CB CCC CE cURus PSE RCM TUV	240 W	1	IP65	45 V	39 V	3750 V	92.5 %	5.72 A	Chassis Mount	90 °C	-40 °C
