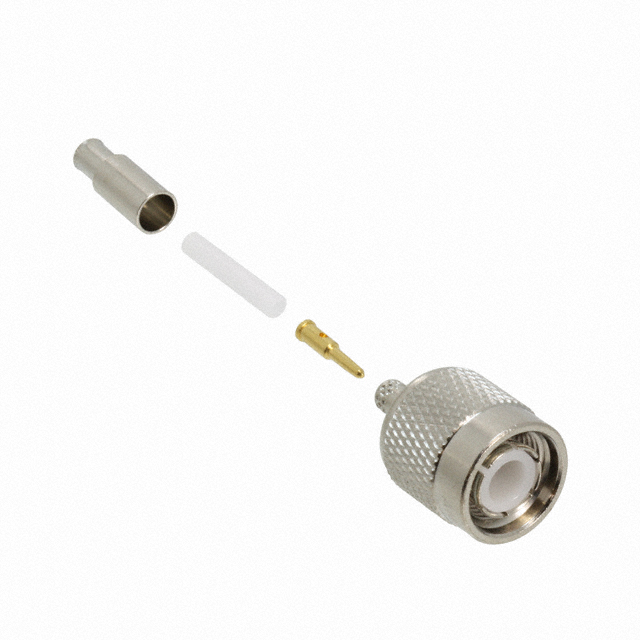

031-2242-RFX

Active

Amphenol RF

CONN TNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN TNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	031-2242-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Voltage Rating	Connector Style	Body Finish	Center Contact Material	Connector Type	Ingress Protection	Includes	Contact Termination	Center Contact Plating	Body Material	Impedance	Shield Termination	Fastening Type	Cable Group	Housing Color	Mating Cycles	Dielectric Material	Insertion Loss	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 031-2226-1051	1	100 V	BNC Twinaxial	Nickel	Beryllium Copper Brass	Female Socket Male Pin Plug	Weatherproof	1 Braid Clamp 1 Clamp 1 Connector 1 Gasket 2 Contacts 2 Insulators 2 Washers	Solder	Gold	Brass	50 Ohms	Clamp	Bayonet Lock	108A RG-108	Silver	200	Polytetrafluoroethylene (PTFE)	0.2 dB	Free Hanging (In-Line)	-65 ░C	165 °C
Amphenol RF 031-2242-RFX	1	500 V	TNC	Nickel	Brass	Male Pin Plug		1 Connector 1 Contact 1 Ferrule	Crimp	Gold	Brass	50 Ohms	Crimp		179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Silver	500	Polytetrafluoroethylene (PTFE)		Free Hanging (In-Line)	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
