031-2226-1051

Active

Amphenol RF

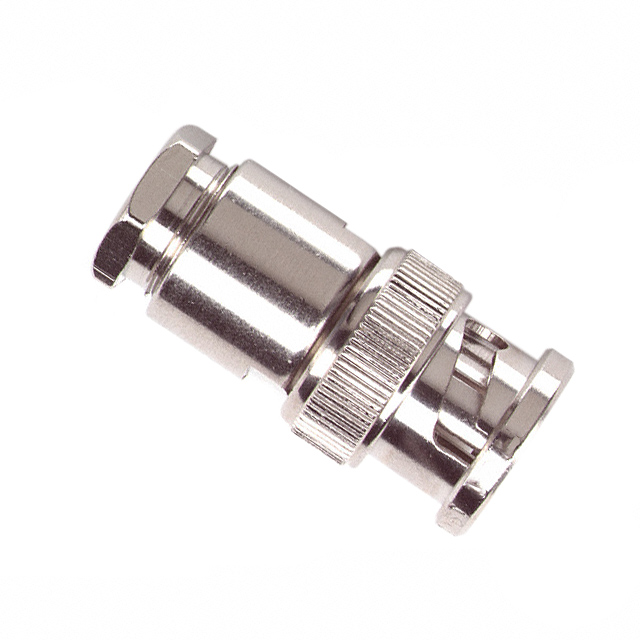

CONN TWINAX PLUG STR 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN TWINAX PLUG STR 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	031-2226-1051

Body Finish	Nickel
Body Material	Brass
Cable Group	108A, RG-108
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC, Twinaxial
Connector Type	Male Pin, Female Socket, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Gasket, 2 Washers, 1 Braid Clamp, 1 Clamp, 2 Insulators, 2 Contacts, 1 Connector
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	200
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	100 V

Part	Number of Ports	Voltage Rating	Connector Style	Body Finish	Center Contact Material	Connector Type	Ingress Protection	Includes	Contact Termination	Center Contact Plating	Body Material	Impedance	Shield Termination	Fastening Type	Cable Group	Housing Color	Mating Cycles	Dielectric Material	Insertion Loss	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 031-2226-1051	1	100 V	BNC Twinaxial	Nickel	Beryllium Copper Brass	Female Socket Male Pin Plug	Weatherproof	1 Braid Clamp 1 Clamp 1 Connector 1 Gasket 2 Contacts 2 Insulators 2 Washers	Solder	Gold	Brass	50 Ohms	Clamp	Bayonet Lock	108A RG-108	Silver	200	Polytetrafluoroethylene (PTFE)	0.2 dB	Free Hanging (In-Line)	-65 ░C	165 °C
Amphenol RF 031-2242-RFX	1	500 V	TNC	Nickel	Brass	Male Pin Plug		1 Connector 1 Contact 1 Ferrule	Crimp	Gold	Brass	50 Ohms	Crimp		179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Silver	500	Polytetrafluoroethylene (PTFE)		Free Hanging (In-Line)	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC, Twinaxial Connector Plug, Female Socket and Male Pin 50 Ohms Free Hanging (In-Line) Solder
