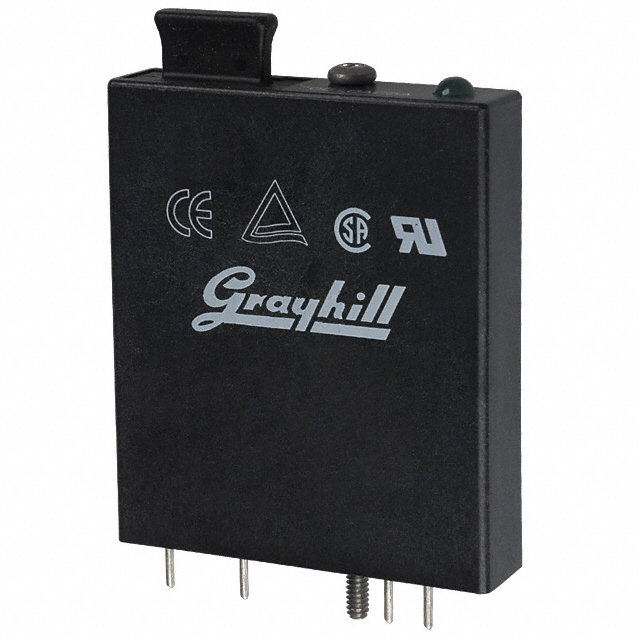

70G-OAC5

Active

Grayhill Inc.

AC OUTPUT MODULE, 20 MA, 5 VDC, 120 VAC, G5 FUSIBLE, NORMALLY OPEN, ZVT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

70G-OAC5

Active

Grayhill Inc.

AC OUTPUT MODULE, 20 MA, 5 VDC, 120 VAC, G5 FUSIBLE, NORMALLY OPEN, ZVT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	70G-OAC5

Color	Black
Current - Input	20 mA
Current - Output	3.5 A
Features	Status LED(s), Fused, Hold Down Screw
Style	G5
Turn Off Time	8.33 ms
Turn On Time	8.33 ms
Type	AC Output Module
Voltage - Input	5 VDC
Voltage - Output [Max]	140 VAC
Voltage - Output [Min]	24 VAC

70G-OAC Series

Part	Voltage - Input	Turn On Time	Current - Output	Type	Color	Voltage - Output [Min]	Voltage - Output [Max]	Turn Off Time	Style	Features	Current - Input	Voltage - Output [Max] [x]	Voltage - Output [Min] [x]
Grayhill Inc. 70G-OAC5	5 VDC	8.33 ms	3.5 A	AC Output Module	Black	24 VAC	140 VAC	8.33 ms	G5	Fused Hold Down Screw Status LED(s)	20 mA
Grayhill Inc. 70G-OAC24-L	24 V	8.33 ms	3.5 A	AC Output Module	Black	24 VAC	140 VAC	8.33 ms	G5	Fused Hold Down Screw Status LED(s)	8 mA
Grayhill Inc. 70G-OAC5RLY	5 VDC	11 ms	3 A	AC Output Module	Black			11 ms	G5	Fused Hold Down Screw Status LED(s)	26 mA	110 250	0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.43
		10	$ 20.36
		25	$ 19.29
		50	$ 18.22
		100	$ 17.15
		250	$ 16.07
		500	$ 15.00
Newark	Each	1	$ 22.73
		5	$ 22.17
		10	$ 21.60
		25	$ 20.46
		50	$ 19.32
		100	$ 18.19

Description

General part information

70G-OAC Series

The 70G-OAC5 is an AC Output G5 Module for use with controllers. It features normally open, zero voltage turn-on (ZVT), G5 fusible module. Meets the requirements of IEEE 472, surge withstanding capability test transient protection. OpenLine and G5 module provides replaceable 5 x 20mm glass fuses.
