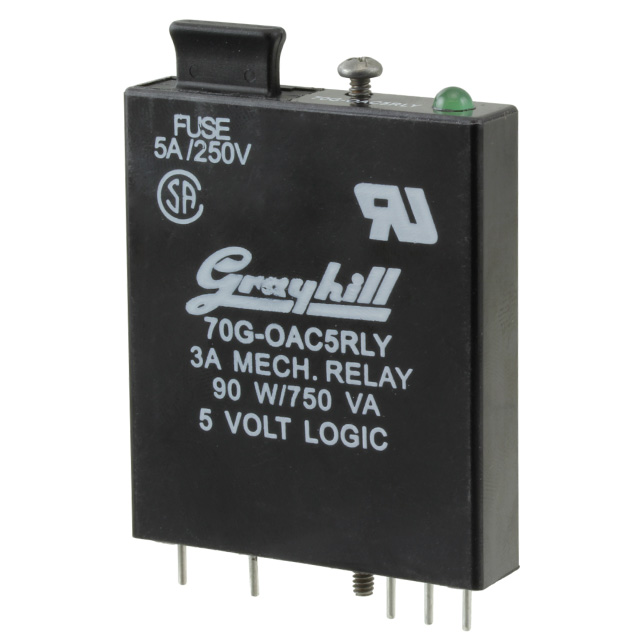

70G-OAC5RLY

Active

Grayhill Inc.

AC OUTPUT MODULE 3A

Search across all available documentation for this part.

Active

Grayhill Inc.

AC OUTPUT MODULE 3A

Technical Specifications

Parameters and characteristics for this part

Specification	70G-OAC5RLY

Color	Black
Current - Input	26 mA
Current - Output	3 A
Features	Status LED(s), Fused, Hold Down Screw
Style	G5
Turn Off Time	11 ms
Turn On Time	11 ms
Type	AC Output Module
Voltage - Input	5 VDC
Voltage - Output [Max] [x]	250, 110
Voltage - Output [Min] [x]	0

Part	Voltage - Input	Turn On Time	Current - Output	Type	Color	Voltage - Output [Min]	Voltage - Output [Max]	Turn Off Time	Style	Features	Current - Input	Voltage - Output [Max] [x]	Voltage - Output [Min] [x]
Grayhill Inc. 70G-OAC5	5 VDC	8.33 ms	3.5 A	AC Output Module	Black	24 VAC	140 VAC	8.33 ms	G5	Fused Hold Down Screw Status LED(s)	20 mA
Grayhill Inc. 70G-OAC24-L	24 V	8.33 ms	3.5 A	AC Output Module	Black	24 VAC	140 VAC	8.33 ms	G5	Fused Hold Down Screw Status LED(s)	8 mA
Grayhill Inc. 70G-OAC5RLY	5 VDC	11 ms	3 A	AC Output Module	Black			11 ms	G5	Fused Hold Down Screw Status LED(s)	26 mA	110 250	0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Output Module Output Module 3A 0 ~ 250VAC, 0 ~ 110VDC Output 5VDC Supply
