1.20.126.403/0000

Active

RAFI USA

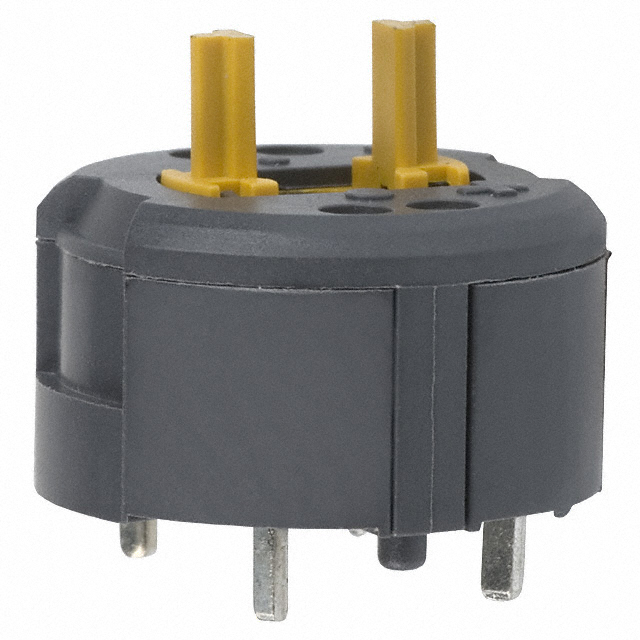

CONTACT BLOCK SPST 0.1A 35V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK SPST 0.1A 35V

Technical Specifications

Parameters and characteristics for this part

Specification	1.20.126.403/0000

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Circuit	SPST-NO + SPST-NC
Contact Rating @ Voltage	35 VAC/DC, 0.1 A
Requires	Switch Body
Termination Style	PC Pin

Part	Requires	Contact Rating @ Voltage	Termination Style	Circuit	(Select First, Then Apply Filters) Compatible Series
RAFI USA 1.20.126.514/0000	Switch Body	0.1 A 35 VAC/DC	Quick Connect - 0.110" (2.8mm)	DPST-NC	Rafix 22 FS
RAFI USA 1.20.126.405/0000	Switch Body	0.1 A 35 VAC/DC	PC Pin	DPST-NO	Rafix 22 FS
RAFI USA 1.20.126.505/0000	Switch Body	0.1 A 35 VAC/DC	Quick Connect - 0.110" (2.8mm)	DPST-NO	Rafix 22 FS
RAFI USA 1.20.126.604/0000	Switch Body	3 A 120 VAC	PC Pin	DPST-NC	Rafix 22 FS
RAFI USA 1.20.126.302/9000	Switch Body	3 A 120 VAC	Quick Connect - 0.110" (2.8mm)	SPST-NO	Rafix 22 FS
RAFI USA 1.20.126.103/9000	Switch Body	0.1 A 35 VAC/DC	Quick Connect - 0.110" (2.8mm)	SPST-NO + SPST-NC	Rafix 22 FS
RAFI USA 1.20.126.704/9000	Switch Body	3 A 120 VAC	Quick Connect - 0.110" (2.8mm)	DPST-NC	Rafix 22 FS
RAFI USA 1.20.126.005/9000	Switch Body	0.1 A 35 VAC/DC	PC Pin	DPST-NO	Rafix 22 FS
RAFI USA 1.20.126.403/0000	Switch Body	0.1 A 35 VAC/DC	PC Pin	SPST-NO + SPST-NC	Rafix 22 FS
RAFI USA 1.20.126.104/0000	Switch Body	0.1 A 35 VAC/DC	Quick Connect - 0.110" (2.8mm)	DPST-NC	Rafix 22 FS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NO + SPST-NC 0.1A @ 35VAC/DC
