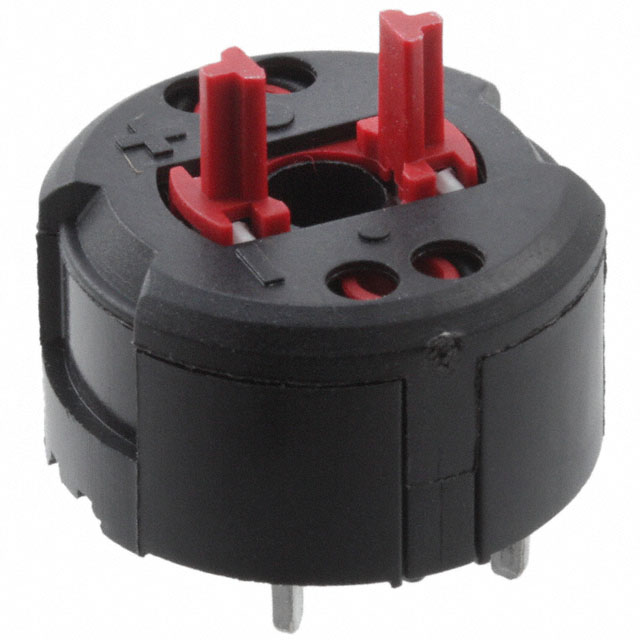

1.20.126.604/0000

Active

RAFI USA

CONTACT BLOCK DPST-NC 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK DPST-NC 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	1.20.126.604/0000

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Circuit	DPST-NC
Contact Rating @ Voltage	3 A, 120 VAC
Requires	Switch Body
Termination Style	PC Pin

Part	Requires	Contact Rating @ Voltage	Termination Style	Circuit	(Select First, Then Apply Filters) Compatible Series
RAFI USA 1.20.126.514/0000	Switch Body	0.1 A 35 VAC/DC	Quick Connect - 0.110" (2.8mm)	DPST-NC	Rafix 22 FS
RAFI USA 1.20.126.405/0000	Switch Body	0.1 A 35 VAC/DC	PC Pin	DPST-NO	Rafix 22 FS
RAFI USA 1.20.126.505/0000	Switch Body	0.1 A 35 VAC/DC	Quick Connect - 0.110" (2.8mm)	DPST-NO	Rafix 22 FS
RAFI USA 1.20.126.604/0000	Switch Body	3 A 120 VAC	PC Pin	DPST-NC	Rafix 22 FS
RAFI USA 1.20.126.302/9000	Switch Body	3 A 120 VAC	Quick Connect - 0.110" (2.8mm)	SPST-NO	Rafix 22 FS
RAFI USA 1.20.126.103/9000	Switch Body	0.1 A 35 VAC/DC	Quick Connect - 0.110" (2.8mm)	SPST-NO + SPST-NC	Rafix 22 FS
RAFI USA 1.20.126.704/9000	Switch Body	3 A 120 VAC	Quick Connect - 0.110" (2.8mm)	DPST-NC	Rafix 22 FS
RAFI USA 1.20.126.005/9000	Switch Body	0.1 A 35 VAC/DC	PC Pin	DPST-NO	Rafix 22 FS
RAFI USA 1.20.126.403/0000	Switch Body	0.1 A 35 VAC/DC	PC Pin	SPST-NO + SPST-NC	Rafix 22 FS
RAFI USA 1.20.126.104/0000	Switch Body	0.1 A 35 VAC/DC	Quick Connect - 0.110" (2.8mm)	DPST-NC	Rafix 22 FS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 19.07

General part information

Configurable Contact Block DPST-NC 3A @ 120VAC
