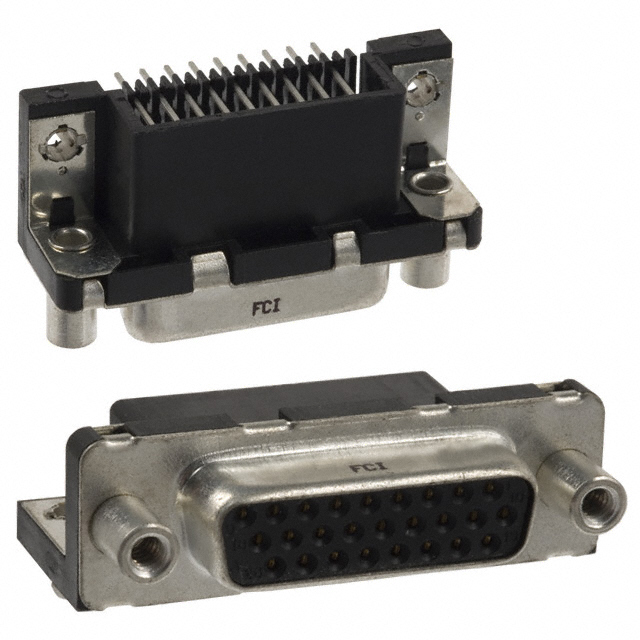

ICD26S13E4GV00LF
ActiveAmphenol ICC (FCI)
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
ICD26S13E4GV00LF
ActiveAmphenol ICC (FCI)
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICD26S13E4GV00LF |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
| Voltage Rating | 300 VDC |
ICD26S13 Series
| Part | Number of Rows | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Current Rating (Amps) | Features | Dielectric Material | Flange Feature | Contact Material | Voltage Rating | Color | Mounting Type | Connector Style | Contact Type | Connector Type | Shell Material, Finish | Termination | Shell Size, Connector Layout | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 3 | 26 | 0.76 Ám | 30 Áin | Gold | -55 °C | 125 °C | UL94 V-0 | 3 A | Board Lock Mounting Brackets | Polyester | Female Screwlock (4-40) Mating Side | Copper Alloy | 300 VDC | Black | Through Hole Right Angle | D-Sub High Density | Signal | Receptacle Female Sockets | Nickel Plated Steel | Solder | 2 | (DA A) High Density | 8.89 mm | 0.35 in | |
Amphenol ICC (FCI) | 3 | 26 | Gold | -55 °C | 125 °C | UL94 V-0 | 3 A | Board Lock Mounting Brackets | Polyester | Female Screwlock (4-40) Mating Side | Copper Alloy | 300 VDC | Black | Through Hole Right Angle | D-Sub High Density | Signal | Receptacle Female Sockets | Nickel Plated Steel | Solder | 2 | (DA A) High Density | 8.89 mm | 0.35 in | Flash | ||
Amphenol ICC (FCI) | 3 | 26 | 0.76 Ám | 30 Áin | Gold | -55 °C | 125 °C | UL94 V-0 | 3 A | Board Lock Mounting Brackets | Polyester | Housing/Shell (4-40) | Copper Alloy | 300 VDC | Black | Through Hole Right Angle | D-Sub High Density | Signal | Receptacle Female Sockets | Nickel Plated Steel | Solder | 2 | (DA A) High Density | 8.89 mm | 0.35 in | |
Amphenol ICC (FCI) | 3 | 26 | 0.76 Ám | 30 Áin | Gold | -55 °C | 125 °C | UL94 V-0 | 3 A | Board Lock Mounting Brackets | Polyester | Housing/Shell (M3) | Copper Alloy | 300 VDC | Black | Through Hole Right Angle | D-Sub High Density | Signal | Receptacle Female Sockets | Nickel Plated Steel | Solder | 2 | (DA A) High Density | 8.89 mm | 0.35 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.24 | |
| 10 | $ 3.05 | |||
| 25 | $ 2.92 | |||
| 40 | $ 2.77 | |||
| 80 | $ 2.57 | |||
| 230 | $ 2.30 | |||
| 440 | $ 2.15 | |||
| 945 | $ 1.99 | |||
| 2400 | $ 1.81 | |||
Description
General part information
ICD26S13 Series
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
