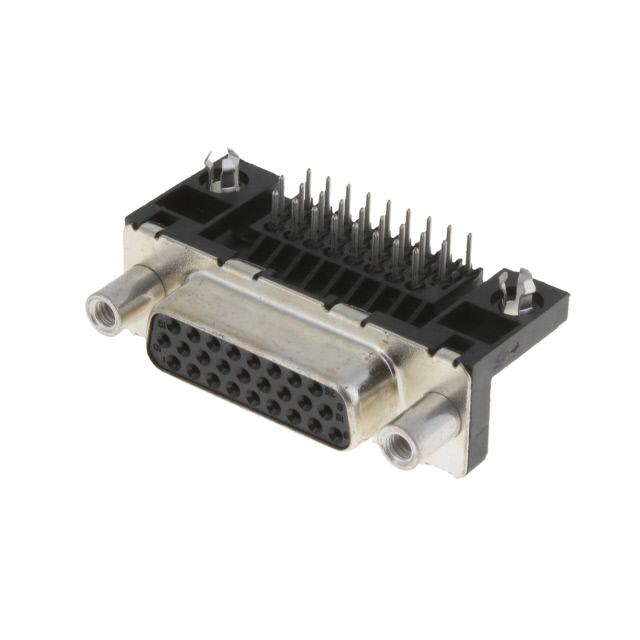

ICD26S13E6GV00LF

Active

Amphenol ICC (FCI)

CONN D-SUB HD RCPT 26P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documentsd sub productpresentation Other Related Document Datasheet

ICD26S13E6GV00LF

Active

Amphenol ICC (FCI)

CONN D-SUB HD RCPT 26P R/A SLDR

Deep-Dive with AI

Documentsd sub productpresentation Other Related Document Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ICD26S13E6GV00LF

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester
Features	Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder
Voltage Rating	300 VDC

ICD26S13 Series

Part	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Features	Dielectric Material	Flange Feature	Contact Material	Voltage Rating	Color	Mounting Type	Connector Style	Contact Type	Connector Type	Shell Material, Finish	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Contact Finish Thickness
Amphenol ICC (FCI) ICD26S13E6GV00LF	3	26	0.76 Ám	30 Áin	Gold	-55 °C	125 °C	UL94 V-0	3 A	Board Lock Mounting Brackets	Polyester	Female Screwlock (4-40) Mating Side	Copper Alloy	300 VDC	Black	Through Hole Right Angle	D-Sub High Density	Signal	Receptacle Female Sockets	Nickel Plated Steel	Solder	2	(DA A) High Density	8.89 mm	0.35 in
Amphenol ICC (FCI) ICD26S13E4GV00LF	3	26			Gold	-55 °C	125 °C	UL94 V-0	3 A	Board Lock Mounting Brackets	Polyester	Female Screwlock (4-40) Mating Side	Copper Alloy	300 VDC	Black	Through Hole Right Angle	D-Sub High Density	Signal	Receptacle Female Sockets	Nickel Plated Steel	Solder	2	(DA A) High Density	8.89 mm	0.35 in	Flash
Amphenol ICC (FCI) ICD26S13E6GX00LF	3	26	0.76 Ám	30 Áin	Gold	-55 °C	125 °C	UL94 V-0	3 A	Board Lock Mounting Brackets	Polyester	Housing/Shell (4-40)	Copper Alloy	300 VDC	Black	Through Hole Right Angle	D-Sub High Density	Signal	Receptacle Female Sockets	Nickel Plated Steel	Solder	2	(DA A) High Density	8.89 mm	0.35 in
Amphenol ICC (FCI) ICD26S13E6GL00LF	3	26	0.76 Ám	30 Áin	Gold	-55 °C	125 °C	UL94 V-0	3 A	Board Lock Mounting Brackets	Polyester	Housing/Shell (M3)	Copper Alloy	300 VDC	Black	Through Hole Right Angle	D-Sub High Density	Signal	Receptacle Female Sockets	Nickel Plated Steel	Solder	2	(DA A) High Density	8.89 mm	0.35 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.69
		10	$ 3.58
		25	$ 3.23
		50	$ 2.99
		100	$ 2.77
		250	$ 2.52
		500	$ 2.34
		1000	$ 2.19
		2500	$ 2.00
