QBLP601-2IR4

Active

QT Brightek (QTB)

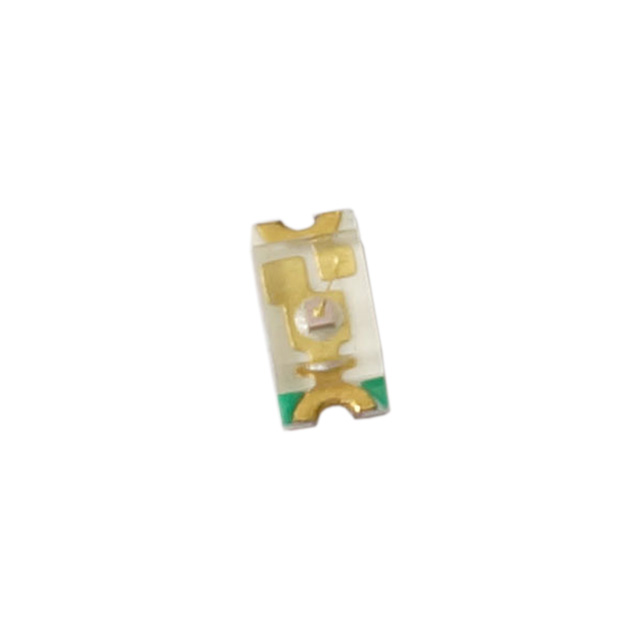

0603 IR LED, 765NM, CLEAR LENS,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP601-2IR4

Active

QT Brightek (QTB)

0603 IR LED, 765NM, CLEAR LENS,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBLP601-2IR4

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	0603 (1608 Metric)
Radiant Intensity (Ie) Min @ If [Min]	0.2 mW/sr
Type	Infrared (IR)
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	1.6 V
Wavelength	765 nm

QBLP601 Series

Part	Configuration	Height (Max) [Max] [z]	Lens Color	Lens Size [y]	Lens Size [x]	Color	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Current - Test	Lens Style	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Transparency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If	Orientation	Type	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Wavelength - Dominant	Lens Size [diameter]	Wavelength - Peak
QT Brightek (QTB) QBLP601-IW-2897	Standard	0.7 mm	Yellow	0.8 mm	1.1 mm	White	1.6 mm	0.8 mm	140 °	20 mA	Rectangle with Flat Top	900 mcd	3 V	Surface Mount	Diffused	0603 (1608 Metric)
QT Brightek (QTB) QBLP601-IR4									140 °				1.8 V	Surface Mount		0603 (1608 Metric)	-40 °C	80 C	50 mA	0.6 mW/sr	Top View	Infrared (IR)
QT Brightek (QTB) QBLP601-2IR4									140 °				1.6 V	Surface Mount		0603 (1608 Metric)	-40 °C	80 C	50 mA		Top View	Infrared (IR)	765 nm	0.2 mW/sr
QT Brightek (QTB) QBLP601-IR3-2897									140 °				1.4 V	Surface Mount		0603 (1608 Metric)	-40 °C	80 C	50 mA	0.3 mW/sr	Top View	Infrared (IR)	850 nm
QT Brightek (QTB) QBLP601-YG1-2943	Standard	0.7 mm	White	0.8 mm	1.1 mm	Green	1.6 mm	0.8 mm	140 °	20 mA	Rectangle with Flat Top	15 mcd	2 V	Surface Mount	Diffused	0603 (1608 Metric)									572 nm
QT Brightek (QTB) QBLP601D-AG	Standard	1.05 mm	Colorless			Yellow-Green	1.6 mm	0.8 mm	35 °	20 mA	Round with Domed Top	130 mcd	2 V	Surface Mount	Clear	0603 (1608 Metric)									573 nm	0.7 mm
QT Brightek (QTB) QBLP601-R5	Standard	0.7 mm	Colorless	0.8 mm	1.1 mm	Red	1.6 mm	0.8 mm	140 °	5 mA	Rectangle with Flat Top	33 mcd	1.8 V	Surface Mount	Clear	0603 (1608 Metric)									625 nm		633 nm
QT Brightek (QTB) QBLP601-R3-2943	Standard	0.7 mm	White	0.8 mm	1.1 mm	Red	1.6 mm	0.8 mm	140 °	20 mA	Rectangle with Flat Top	105 mcd	2 V	Surface Mount	Diffused	0603 (1608 Metric)									633 nm
QT Brightek (QTB) QBLP601D-IG	Standard	1.05 mm	Colorless			Green	1.6 mm	0.8 mm	35 °	20 mA	Round with Domed Top	2000 mcd	3.2 V	Surface Mount	Clear	0603 (1608 Metric)									520 nm	0.7 mm
QT Brightek (QTB) QBLP601D-R	Standard	1.05 mm	Colorless			Red	1.6 mm	0.8 mm	35 °	20 mA	Round with Domed Top	400 mcd 420 mcd	2 V	Surface Mount	Clear	0603 (1608 Metric)									624 nm	0.7 mm	632 nm
