QBLP601-IR4

Active

QT Brightek (QTB)

0603/ IR 740NM/ IE=1.7MW/SR @ 20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP601-IR4

Active

QT Brightek (QTB)

0603/ IR 740NM/ IE=1.7MW/SR @ 20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBLP601-IR4

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	0603 (1608 Metric)
Radiant Intensity (Ie) Min @ If	0.6 mW/sr
Type	Infrared (IR)
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	1.8 V

QBLP601 Series

Part	Configuration	Height (Max) [Max] [z]	Lens Color	Lens Size [y]	Lens Size [x]	Color	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Current - Test	Lens Style	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Transparency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If	Orientation	Type	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Wavelength - Dominant	Lens Size [diameter]	Wavelength - Peak
QT Brightek (QTB) QBLP601-IW-2897	Standard	0.7 mm	Yellow	0.8 mm	1.1 mm	White	1.6 mm	0.8 mm	140 °	20 mA	Rectangle with Flat Top	900 mcd	3 V	Surface Mount	Diffused	0603 (1608 Metric)
QT Brightek (QTB) QBLP601-IR4									140 °				1.8 V	Surface Mount		0603 (1608 Metric)	-40 °C	80 C	50 mA	0.6 mW/sr	Top View	Infrared (IR)
QT Brightek (QTB) QBLP601-2IR4									140 °				1.6 V	Surface Mount		0603 (1608 Metric)	-40 °C	80 C	50 mA		Top View	Infrared (IR)	765 nm	0.2 mW/sr
QT Brightek (QTB) QBLP601-IR3-2897									140 °				1.4 V	Surface Mount		0603 (1608 Metric)	-40 °C	80 C	50 mA	0.3 mW/sr	Top View	Infrared (IR)	850 nm
QT Brightek (QTB) QBLP601-YG1-2943	Standard	0.7 mm	White	0.8 mm	1.1 mm	Green	1.6 mm	0.8 mm	140 °	20 mA	Rectangle with Flat Top	15 mcd	2 V	Surface Mount	Diffused	0603 (1608 Metric)									572 nm
QT Brightek (QTB) QBLP601D-AG	Standard	1.05 mm	Colorless			Yellow-Green	1.6 mm	0.8 mm	35 °	20 mA	Round with Domed Top	130 mcd	2 V	Surface Mount	Clear	0603 (1608 Metric)									573 nm	0.7 mm
QT Brightek (QTB) QBLP601-R5	Standard	0.7 mm	Colorless	0.8 mm	1.1 mm	Red	1.6 mm	0.8 mm	140 °	5 mA	Rectangle with Flat Top	33 mcd	1.8 V	Surface Mount	Clear	0603 (1608 Metric)									625 nm		633 nm
QT Brightek (QTB) QBLP601-R3-2943	Standard	0.7 mm	White	0.8 mm	1.1 mm	Red	1.6 mm	0.8 mm	140 °	20 mA	Rectangle with Flat Top	105 mcd	2 V	Surface Mount	Diffused	0603 (1608 Metric)									633 nm
QT Brightek (QTB) QBLP601D-IG	Standard	1.05 mm	Colorless			Green	1.6 mm	0.8 mm	35 °	20 mA	Round with Domed Top	2000 mcd	3.2 V	Surface Mount	Clear	0603 (1608 Metric)									520 nm	0.7 mm
QT Brightek (QTB) QBLP601D-R	Standard	1.05 mm	Colorless			Red	1.6 mm	0.8 mm	35 °	20 mA	Round with Domed Top	400 mcd 420 mcd	2 V	Surface Mount	Clear	0603 (1608 Metric)									624 nm	0.7 mm	632 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.00
		10	$ 0.61
		100	$ 0.41
		500	$ 0.33
		1000	$ 0.31
		2000	$ 0.29
	Digi-Reel®	1	$ 1.00
		10	$ 0.61
		100	$ 0.41
		500	$ 0.33
		1000	$ 0.31
		2000	$ 0.29
	Tape & Reel (TR)	4000	$ 0.27
		8000	$ 0.26
		12000	$ 0.25
		20000	$ 0.25
		28000	$ 0.24
		40000	$ 0.24

Description

General part information

QBLP601 Series

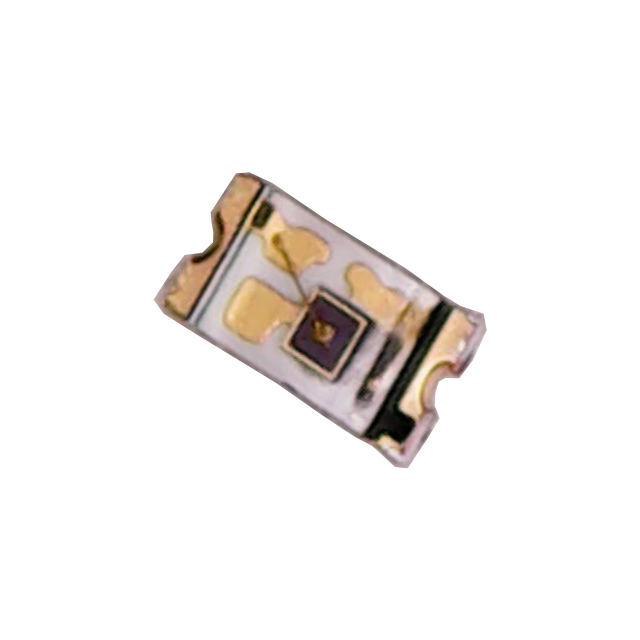

Infrared (IR) Emitter 740nm 1.8V 50mA 0.6mW/sr @ 20mA 140° 0603 (1608 Metric)
