7093-0183
ActiveAmphenol SV Microwave

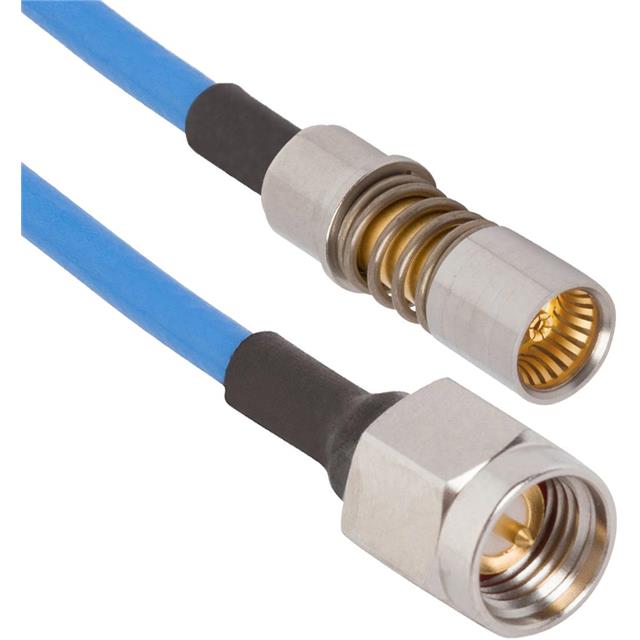

CBL ASSY BMA-SMA JACK-PLUG 24"
Deep-Dive with AI
Search across all available documentation for this part.
7093-0183
ActiveAmphenol SV Microwave
CBL ASSY BMA-SMA JACK-PLUG 24"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7093-0183 |
|---|---|
| 1st Connector | BMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | TFlex-402 |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | BMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 283.52 | |
| 10 | $ 262.73 | |||
| 30 | $ 253.28 | |||
Description
General part information
7093 Series
Cable Assembly Coaxial BMA to SMA TFlex-402 24.00" (609.60mm)
Documents
Technical documentation and resources
No documents available
