7093-0176
ActiveAmphenol SV Microwave

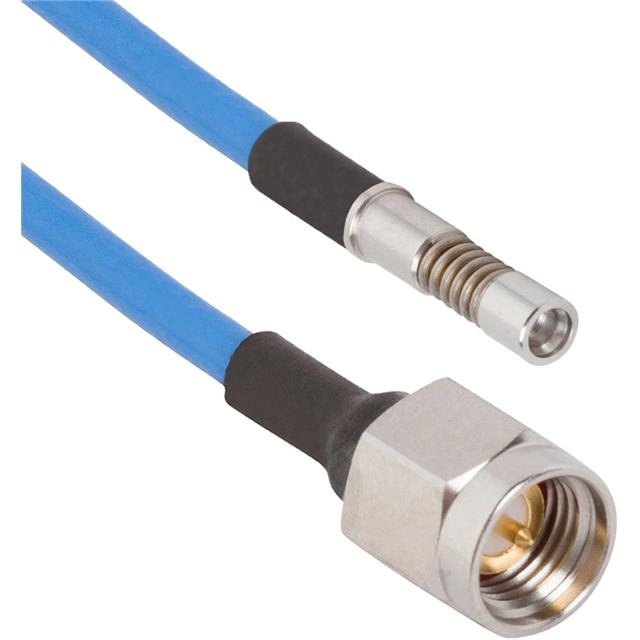

COAX CBL SMA TO SMPM 6"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7093-0176
ActiveAmphenol SV Microwave
COAX CBL SMA TO SMPM 6"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7093-0176 |
|---|---|
| 1st Connector | SMPM Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | TFlex-405 |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length | 152.4 mm |
| Length | 6 in |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMPM |
7093 Series
| Part | 1st Contact Gender | Features | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Length | Length | Cable Type | Style | 2nd Connector Mounting Type | 1st Connector Mounting Type | Overall Impedance | 2nd Contact Gender | 1st Connector | 2nd Connector | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol SV Microwave | Female | Shielded | -65 ░C | 165 °C | 18 GHz | 12 " | 304.8 mm | TFlex-405 | SMA to SMPM | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | SMPM Jack | SMA Plug | Blue |
Amphenol SV Microwave | Female | Shielded | -65 ░C | 165 °C | 18 GHz | 6 in | 152.4 mm | TFlex-405 | SMA to SMPM | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | SMPM Jack | SMA Plug | Blue |
Amphenol SV Microwave | Female | Shielded | -65 ░C | 165 °C | 18 GHz | 24 " | 609.6 mm | TFlex-402 | BMA to SMA | Free Hanging (In-Line) | Free Hanging (In-Line) | 50 Ohms | Male | BMA Jack | SMA Plug | Blue |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 171.88 | |
| 10 | $ 146.11 | |||
| 25 | $ 136.97 | |||
| 50 | $ 131.64 | |||
Description
General part information
7093 Series
Cable Assembly Coaxial SMA to SMPM TFlex-405 6.000" (152.40mm)
