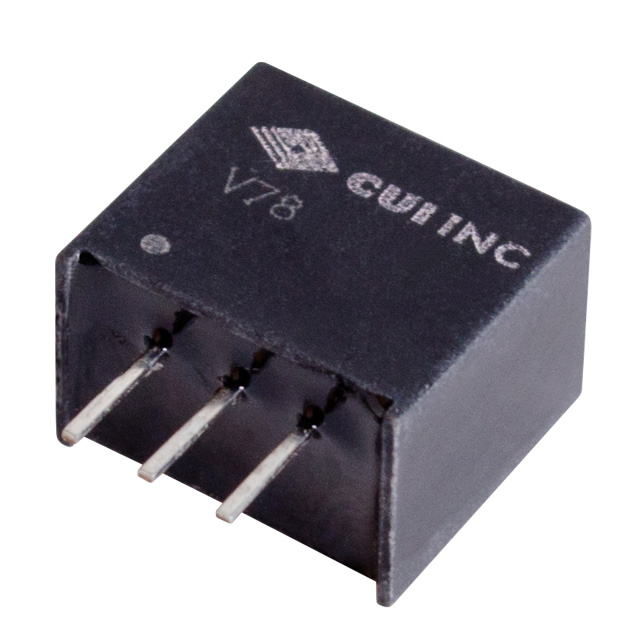

V7809-500
ObsoleteCUI Inc.
DC DC CONVERTER 9V 4.5W
Deep-Dive with AI
Search across all available documentation for this part.
V7809-500
ObsoleteCUI Inc.
DC DC CONVERTER 9V 4.5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7809-500 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 95 % |
| Features | OTP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 4.5 W |
| Size / Dimension [x] | 11.4 mm |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Linear Regulator Replacement |
| Voltage - Input (Max) [Max] | 32 V |
| Voltage - Input (Min) [Min] | 11 V |
| Voltage - Output 1 | 9 V |
V7809 Series
| Part | Package / Case | Current - Output (Max) [Max] | Features | Voltage - Input (Min) [Min] | Voltage - Output 1 | Power (Watts) | Voltage - Input (Max) [Max] | Efficiency | Number of Outputs | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | 3-SIP Module | 500 mA | OTP SCP | 14 V | 9 V | 4.5 W | 72 V | 92 % | 1 | Linear Regulator Replacement | 0.45 in | 0.35 " | 17.5 mm | 0.69 in | 11.5 mm | 9 mm | Through Hole Right Angle | ITE (Commercial) | 85 °C | -40 °C |
CUI Inc. | 3-SIP Module | 500 mA | OTP SCP | 11 V | 9 V | 4.5 W | 32 V | 95 % | 1 | Linear Regulator Replacement | 0.3 " | 0.4 " | 11.4 mm | 0.45 in | 7.6 mm | 10.2 mm | Through Hole | ITE (Commercial) | 85 °C | -40 °C |
CUI Inc. | 3-SIP Module | 1 A | OTP SCP | 9 V | 9 W | 32 V | 95 % | 1 | Linear Regulator Replacement | 0.45 in | 0.35 " | 17.5 mm | 0.69 in | 11.5 mm | 9 mm | Through Hole Right Angle | ITE (Commercial) | 85 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
V7809 Series
Linear Regulator Replacement DC DC Converter 1 Output 9V 500mA 11V - 32V Input
