V7809-1000R

Obsolete

CUI Inc.

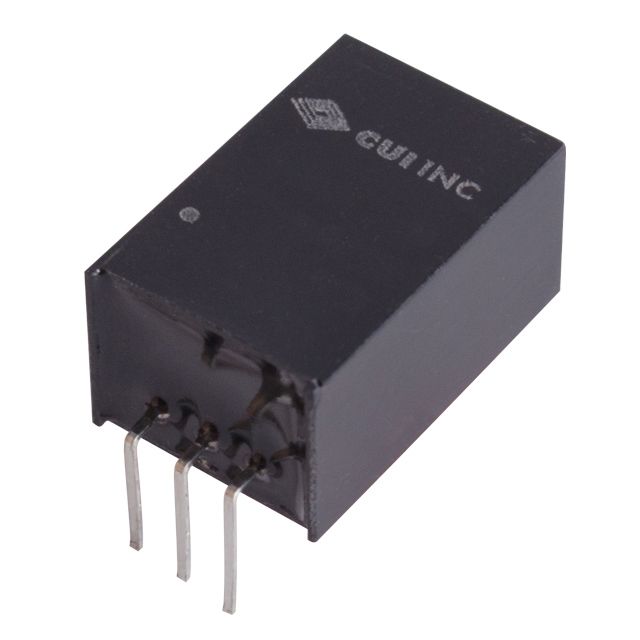

DC DC CONVERTER 9V 9W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 9V 9W

Technical Specifications

Parameters and characteristics for this part

Specification	V7809-1000R

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Efficiency	95 %
Features	OTP, SCP
Mounting Type	Through Hole, Right Angle
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	9 W
Size / Dimension [x]	17.5 mm
Size / Dimension [x]	0.69 in
Size / Dimension [y]	0.45 in
Size / Dimension [y]	11.5 mm
Size / Dimension [z]	0.35 "
Size / Dimension [z]	9 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Output 1	9 V

Part	Package / Case	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]
CUI Inc. V7809W-500R	3-SIP Module	500 mA	OTP SCP	14 V	9 V	4.5 W	72 V	92 %	1	Linear Regulator Replacement	0.45 in	0.35 "	17.5 mm	0.69 in	11.5 mm	9 mm	Through Hole Right Angle	ITE (Commercial)	85 °C	-40 °C
CUI Inc. V7809-500	3-SIP Module	500 mA	OTP SCP	11 V	9 V	4.5 W	32 V	95 %	1	Linear Regulator Replacement	0.3 "	0.4 "	11.4 mm	0.45 in	7.6 mm	10.2 mm	Through Hole	ITE (Commercial)	85 °C	-40 °C
CUI Inc. V7809-1000R	3-SIP Module	1 A	OTP SCP		9 V	9 W	32 V	95 %	1	Linear Regulator Replacement	0.45 in	0.35 "	17.5 mm	0.69 in	11.5 mm	9 mm	Through Hole Right Angle	ITE (Commercial)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Regulator Replacement DC DC Converter 1 Output 9V 1A 12V - 32V Input
