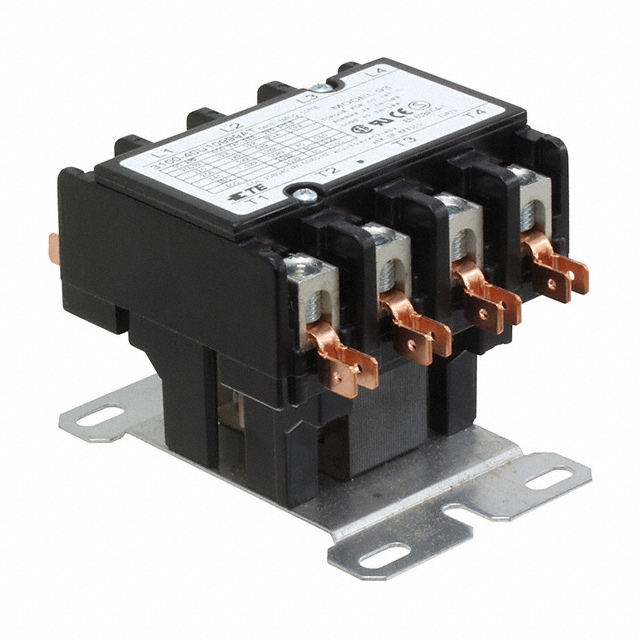

3100-40U10999AT

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 4PST 40A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3100-40U10999AT

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 4PST 40A 240V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3100-40U10999AT

Coil Power	9.5 VA
Coil Resistance	520 Ohms
Coil Voltage	240 VAC
Contact Form	4PST-NO (DM) (4 Form X)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	40 A
Features	Insulation - Class B
Mounting Type	Chassis Mount
Must Operate Voltage	177 VAC
Must Release Voltage	40 VAC
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Switching Voltage	600 VAC
Termination Style	Screw Terminal, Quick Connect
Termination Style	0.25 in

3100 Series

Part	Switching Voltage	Coil Resistance	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Coil Voltage	Contact Form	Contact Form	Contact Form	Contact Material	Features	Must Release Voltage	Coil Power	Termination Style	Termination Style	Contact Rating (Current)	Coil Current
TE Connectivity Potter & Brumfield Relays 3100Y30J17999CJ	600 VAC	45 Ohms	93 VAC	65 °C	-40 °C	Chassis Mount	120 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	20 VAC	14 VA	Quick Connect Screw Terminal	0.25 in	60 A
TE Connectivity Potter & Brumfield Relays 3100-30U10999LN	600 VAC	720 Ohms	177 VAC	65 °C	-40 °C	Chassis Mount	240 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	40 VAC	80 W	Quick Connect Screw Terminal	0.25 in	40 A	333.3 mA
TE Connectivity Potter & Brumfield Relays 3100-20Q5999C	600 VAC	11 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC		DPST-NO (DM) (2 Form X)		Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	7 VA	Quick Connect Screw Terminal	0.25 in	26 A
TE Connectivity Potter & Brumfield Relays 3100-30T10999CG	600 VAC	180 Ohms	88 VAC/DC	65 °C	-40 °C	Chassis Mount	120 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	20 VAC	5 VA	Quick Connect Screw Terminal	0.25 in	40 A
TE Connectivity Potter & Brumfield Relays 3100-40U10999AT	600 VAC	520 Ohms	177 VAC	65 °C	-40 °C	Chassis Mount	240 VAC		4PST-NO (DM) (4 Form X)		Silver Cadmium Oxide (AgCdO)	Insulation - Class B	40 VAC	9.5 VA	Quick Connect Screw Terminal	0.25 in	40 A
TE Connectivity Potter & Brumfield Relays 3100-30Q10999CJ	600 VAC	7 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	5 VA	Quick Connect Screw Terminal	0.25 in	40 A
TE Connectivity Potter & Brumfield Relays 3100-30Q10999LN	600 VAC	7 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	82 W	Quick Connect Screw Terminal	0.25 in	40 A	3.4 A
TE Connectivity Potter & Brumfield Relays 3100-30Q9999CG	600 VAC	7 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	5 VA	Quick Connect Screw Terminal	0.25 in	30 A
TE Connectivity Potter & Brumfield Relays 3100-20Q6999C	600 VAC	11 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC		DPST-NO (DM) (2 Form X)		Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	7 VA	Quick Connect Screw Terminal	0.25 in	30 A
TE Connectivity Potter & Brumfield Relays 3100-30T8999CY	600 VAC	180 Ohms	88 VAC/DC	65 °C	-40 °C	Chassis Mount	120 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	20 VAC	5 VA	Quick Connect Screw Terminal	0.25 in	25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3100 Series

RELAY CONTACTOR 4PST 40A 240V
