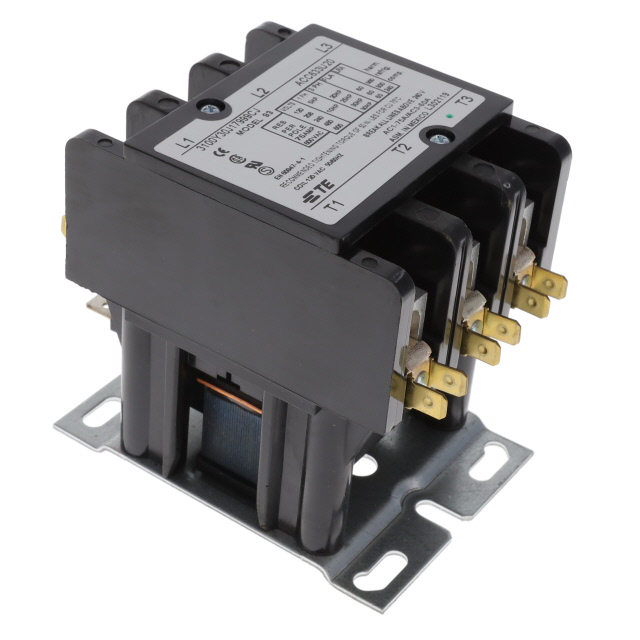

3100Y30J17999CJ

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 3PST 60A 120V

Deep-Dive with AI

Search across all available documentation for this part.

3100Y30J17999CJ

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 3PST 60A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3100Y30J17999CJ

Coil Power	14 VA
Coil Resistance	45 Ohms
Coil Voltage	120 VAC
Contact Form	DM
Contact Form	3PST-NO
Contact Form	3 Form X
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	60 A
Features	Insulation - Class B
Mounting Type	Chassis Mount
Must Operate Voltage	93 VAC
Must Release Voltage	20 VAC
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Switching Voltage	600 VAC
Termination Style	Screw Terminal, Quick Connect
Termination Style	0.25 in

3100 Series

Part	Switching Voltage	Coil Resistance	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Coil Voltage	Contact Form	Contact Form	Contact Form	Contact Material	Features	Must Release Voltage	Coil Power	Termination Style	Termination Style	Contact Rating (Current)	Coil Current
TE Connectivity Potter & Brumfield Relays 3100Y30J17999CJ	600 VAC	45 Ohms	93 VAC	65 °C	-40 °C	Chassis Mount	120 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	20 VAC	14 VA	Quick Connect Screw Terminal	0.25 in	60 A
TE Connectivity Potter & Brumfield Relays 3100-30U10999LN	600 VAC	720 Ohms	177 VAC	65 °C	-40 °C	Chassis Mount	240 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	40 VAC	80 W	Quick Connect Screw Terminal	0.25 in	40 A	333.3 mA
TE Connectivity Potter & Brumfield Relays 3100-20Q5999C	600 VAC	11 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC		DPST-NO (DM) (2 Form X)		Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	7 VA	Quick Connect Screw Terminal	0.25 in	26 A
TE Connectivity Potter & Brumfield Relays 3100-30T10999CG	600 VAC	180 Ohms	88 VAC/DC	65 °C	-40 °C	Chassis Mount	120 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	20 VAC	5 VA	Quick Connect Screw Terminal	0.25 in	40 A
TE Connectivity Potter & Brumfield Relays 3100-40U10999AT	600 VAC	520 Ohms	177 VAC	65 °C	-40 °C	Chassis Mount	240 VAC		4PST-NO (DM) (4 Form X)		Silver Cadmium Oxide (AgCdO)	Insulation - Class B	40 VAC	9.5 VA	Quick Connect Screw Terminal	0.25 in	40 A
TE Connectivity Potter & Brumfield Relays 3100-30Q10999CJ	600 VAC	7 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	5 VA	Quick Connect Screw Terminal	0.25 in	40 A
TE Connectivity Potter & Brumfield Relays 3100-30Q10999LN	600 VAC	7 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	82 W	Quick Connect Screw Terminal	0.25 in	40 A	3.4 A
TE Connectivity Potter & Brumfield Relays 3100-30Q9999CG	600 VAC	7 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	5 VA	Quick Connect Screw Terminal	0.25 in	30 A
TE Connectivity Potter & Brumfield Relays 3100-20Q6999C	600 VAC	11 Ohms	18 VAC	65 °C	-40 °C	Chassis Mount	24 VAC		DPST-NO (DM) (2 Form X)		Silver Cadmium Oxide (AgCdO)	Insulation - Class B	6 VAC	7 VA	Quick Connect Screw Terminal	0.25 in	30 A
TE Connectivity Potter & Brumfield Relays 3100-30T8999CY	600 VAC	180 Ohms	88 VAC/DC	65 °C	-40 °C	Chassis Mount	120 VAC	DM	3PST-NO	3 Form X	Silver Cadmium Oxide (AgCdO)	Insulation - Class B	20 VAC	5 VA	Quick Connect Screw Terminal	0.25 in	25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 281.67
		10	$ 243.78

Description

General part information

3100 Series

RELAY CONTACTOR 3PST 60A 120V

Documents

Technical documentation and resources

No documents available
