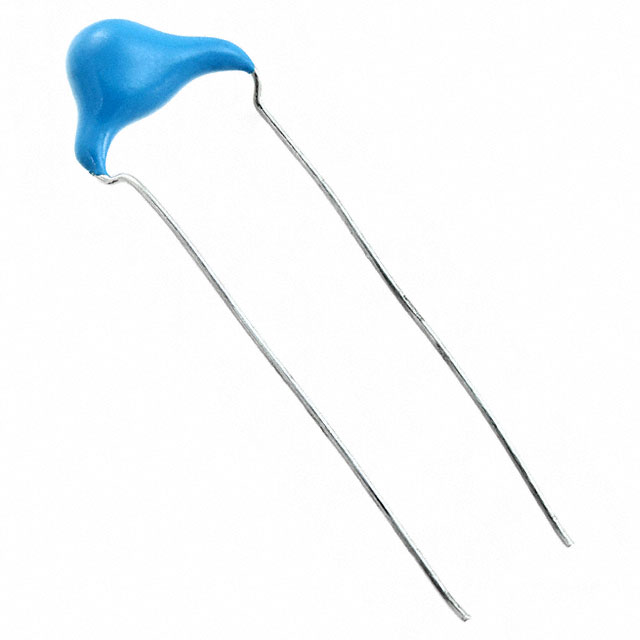

DE1B3KX101KN4AN01F

Obsolete

Murata Power Solutions Inc.

CAP CER 100PF 250V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DE1B3KX101KN4AN01F

Obsolete

Murata Power Solutions Inc.

CAP CER 100PF 250V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE1B3KX101KN4AN01F

Applications	Safety
Capacitance	100 pF
Features	Flame Retardant
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings	Y1, X1
Size / Dimension [diameter]	7 mm
Size / Dimension [diameter]	0.276 in
Temperature Coefficient	B
Tolerance	10 %
Voltage - Rated	250 VAC

DE1B3KX Series

Part	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Ratings	Package / Case	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style	Lead Spacing	Lead Spacing	Temperature Coefficient	Tolerance	Mounting Type	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DE1B3KX221KJ4BP01F
Murata Power Solutions Inc. DE1B3KX681KN4AP01F	Safety	0.315 "	8 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	680 pF	11 mm	0.433 in	Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant
Murata Power Solutions Inc. DE1B3KX221KA4BP01F	Safety	0.315 "	8 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	220 pF	11 mm	0.433 in	Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant
Murata Power Solutions Inc. DE1B3KX101KB4BN01F	Safety	0.276 in	7 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	100 pF			Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant	0.394 in	10 mm
Murata Power Solutions Inc. DE1B3KX151KA4BN01F	Safety	0.276 in	7 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	150 pF			Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant	0.394 in	10 mm
Murata Power Solutions Inc. DE1B3KX101KN4AN01F	Safety	0.276 in	7 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	100 pF			Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant	0.394 in	10 mm
Murata Power Solutions Inc. DE1B3KX331KJ4BN01F
Murata Power Solutions Inc. DE1B3KX331KJ4BP01F
Murata Power Solutions Inc. DE1B3KX331KB4BP01F	Safety	0.276 in	7 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	330 pF			Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant	0.394 in	10 mm
Murata Power Solutions Inc. DE1B3KX681KA4BP01F	Safety	0.315 "	8 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	680 pF	11 mm	0.433 in	Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DE1B3KX Series

100 pF ±10% 250VAC Ceramic Capacitor B Radial, Disc
