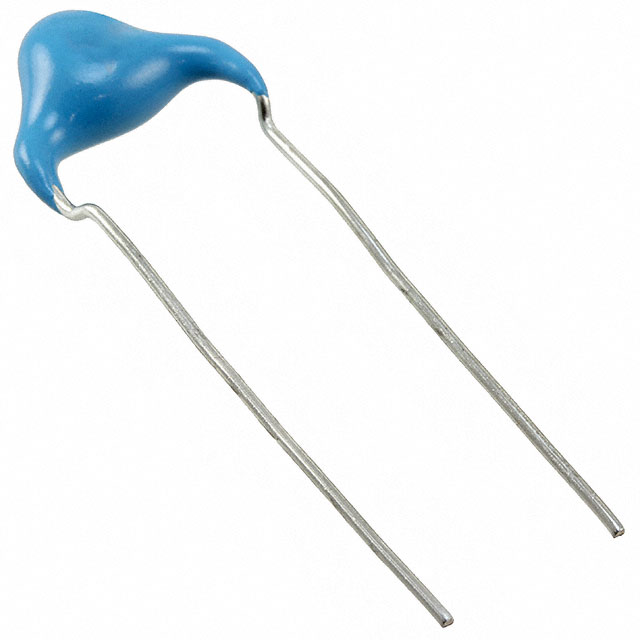

DE1B3KX151KA4BN01F

Obsolete

Murata Power Solutions Inc.

CAP CER 150PF 250V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKH Type Spec Datasheet

DE1B3KX151KA4BN01F

Obsolete

Murata Power Solutions Inc.

CAP CER 150PF 250V RADIAL

Deep-Dive with AI

DocumentsKH Type Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE1B3KX151KA4BN01F

Applications	Safety
Capacitance	150 pF
Features	Flame Retardant
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings	Y1, X1
Size / Dimension [diameter]	7 mm
Size / Dimension [diameter]	0.276 in
Temperature Coefficient	B
Tolerance	10 %
Voltage - Rated	250 VAC

DE1B3KX Series

Part	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Ratings	Package / Case	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style	Lead Spacing	Lead Spacing	Temperature Coefficient	Tolerance	Mounting Type	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DE1B3KX221KJ4BP01F
Murata Power Solutions Inc. DE1B3KX681KN4AP01F	Safety	0.315 "	8 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	680 pF	11 mm	0.433 in	Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant
Murata Power Solutions Inc. DE1B3KX221KA4BP01F	Safety	0.315 "	8 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	220 pF	11 mm	0.433 in	Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant
Murata Power Solutions Inc. DE1B3KX101KB4BN01F	Safety	0.276 in	7 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	100 pF			Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant	0.394 in	10 mm
Murata Power Solutions Inc. DE1B3KX151KA4BN01F	Safety	0.276 in	7 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	150 pF			Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant	0.394 in	10 mm
Murata Power Solutions Inc. DE1B3KX101KN4AN01F	Safety	0.276 in	7 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	100 pF			Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant	0.394 in	10 mm
Murata Power Solutions Inc. DE1B3KX331KJ4BN01F
Murata Power Solutions Inc. DE1B3KX331KJ4BP01F
Murata Power Solutions Inc. DE1B3KX331KB4BP01F	Safety	0.276 in	7 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	330 pF			Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant	0.394 in	10 mm
Murata Power Solutions Inc. DE1B3KX681KA4BP01F	Safety	0.315 "	8 mm	125 °C	-40 °C	250 VAC	X1 Y1	Disc Radial	680 pF	11 mm	0.433 in	Straight	0.394 in	10 mm	B	10 %	Through Hole	Flame Retardant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DE1B3KX Series

150 pF ±10% 250VAC Ceramic Capacitor B Radial, Disc

Documents

Technical documentation and resources

KH Type Spec

Datasheet
