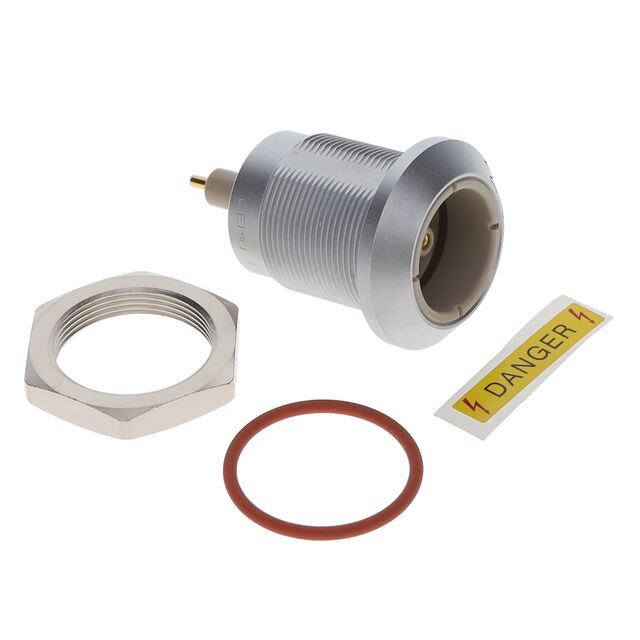

ERA.3Y.425.CLL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.3Y.425.CLL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERA.3Y.425.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Beryllium Copper
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	1
Operating Temperature [Max]	230 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	425

ERA.3Y Series

Part	Shell Finish	Primary Material	Shell Material	Ingress Protection	Shell Size - Insert	Features	Color	Backshell Material, Plating	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insert Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Fastening Type	Number of Positions
LEMO ERA.3Y.430.CTA	Chrome	Metal	Brass	IP50	430	Backshell	Silver	Brass Chrome	Gold	Brass	59 Áin	1.5 Ám	15 A	Polytetrafluoroethylene (PTFE)	Male Pins Receptacle	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.415.CTA	Chrome	Metal	Brass	IP50	415	Backshell	Silver	Brass Chrome	Gold	Brass	59 Áin	1.5 Ám	15 A	Polytetrafluoroethylene (PTFE)	Male Pins Receptacle	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.430.CTL	Chrome	Metal	Brass	IP50	430	Backshell	Silver	Brass Chrome	Gold	Beryllium Copper	78.7 µin	2 µm	15 A	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.430.CLA	Chrome	Metal	Brass	IP50	430	Backshell	Silver	Brass Chrome	Gold	Brass	59 Áin	1.5 Ám	15 A	Polyetheretherketone (PEEK)	Male Pins Receptacle	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.425.CLL	Chrome	Metal	Brass	IP50	425		Silver		Gold	Beryllium Copper	78.7 µin	2 µm	8 A	Polyetheretherketone (PEEK)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.415.CTL	Chrome	Metal	Brass	IP50	415	Backshell	Silver	Brass Chrome	Gold	Beryllium Copper	78.7 µin	2 µm	15 A	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.415.CLL	Chrome	Metal	Brass	IP50	415	Backshell	Silver	Brass Chrome	Gold	Beryllium Copper	78.7 µin	2 µm	15 A	Polyetheretherketone (PEEK)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.430.CLL	Chrome	Metal	Brass	IP50	430	Backshell	Silver	Brass Chrome	Gold	Beryllium Copper	78.7 µin	2 µm	15 A	Polyetheretherketone (PEEK)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 330.89
		10	$ 306.63
		25	$ 295.60

Description

General part information

ERA.3Y Series

1 Position Circular Connector Receptacle, Female Sockets Solder Cup
