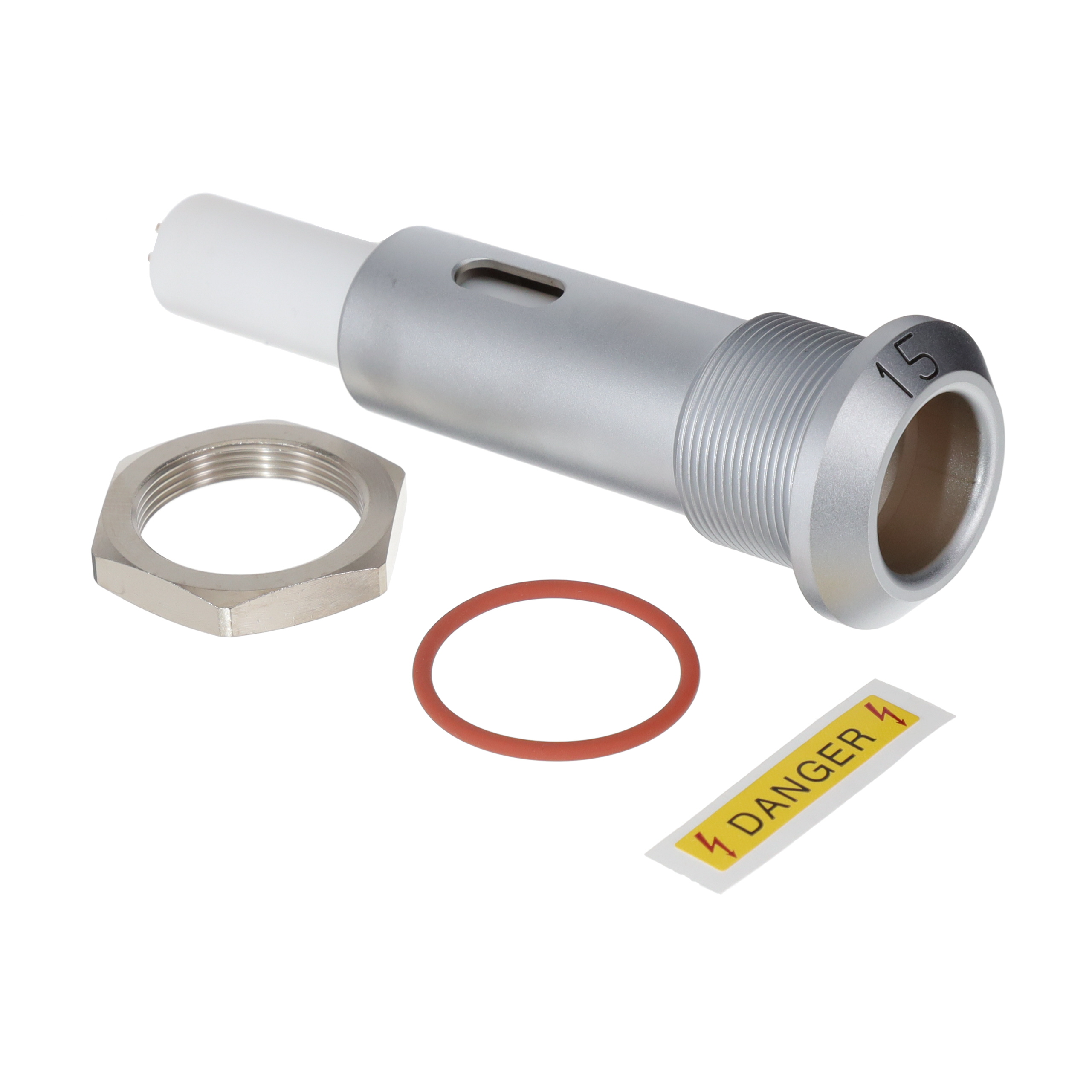

ERA.3Y.415.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.3Y.415.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERA.3Y.415.CTL

Backshell Material, Plating	Brass, Chrome
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Beryllium Copper
Current Rating (Amps)	15 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	1
Operating Temperature [Max]	230 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	415

ERA.3Y Series

Part	Shell Finish	Primary Material	Shell Material	Ingress Protection	Shell Size - Insert	Features	Color	Backshell Material, Plating	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insert Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Fastening Type	Number of Positions
LEMO ERA.3Y.430.CTA	Chrome	Metal	Brass	IP50	430	Backshell	Silver	Brass Chrome	Gold	Brass	59 Áin	1.5 Ám	15 A	Polytetrafluoroethylene (PTFE)	Male Pins Receptacle	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.415.CTA	Chrome	Metal	Brass	IP50	415	Backshell	Silver	Brass Chrome	Gold	Brass	59 Áin	1.5 Ám	15 A	Polytetrafluoroethylene (PTFE)	Male Pins Receptacle	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.430.CTL	Chrome	Metal	Brass	IP50	430	Backshell	Silver	Brass Chrome	Gold	Beryllium Copper	78.7 µin	2 µm	15 A	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.430.CLA	Chrome	Metal	Brass	IP50	430	Backshell	Silver	Brass Chrome	Gold	Brass	59 Áin	1.5 Ám	15 A	Polyetheretherketone (PEEK)	Male Pins Receptacle	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.425.CLL	Chrome	Metal	Brass	IP50	425		Silver		Gold	Beryllium Copper	78.7 µin	2 µm	8 A	Polyetheretherketone (PEEK)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.415.CTL	Chrome	Metal	Brass	IP50	415	Backshell	Silver	Brass Chrome	Gold	Beryllium Copper	78.7 µin	2 µm	15 A	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.415.CLL	Chrome	Metal	Brass	IP50	415	Backshell	Silver	Brass Chrome	Gold	Beryllium Copper	78.7 µin	2 µm	15 A	Polyetheretherketone (PEEK)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1
LEMO ERA.3Y.430.CLL	Chrome	Metal	Brass	IP50	430	Backshell	Silver	Brass Chrome	Gold	Beryllium Copper	78.7 µin	2 µm	15 A	Polyetheretherketone (PEEK)	Receptacle Female Sockets	230 °C	-55 °C	Bulkhead - Rear Side Nut	Push-Pull	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 152.44
		10	$ 139.88
		25	$ 134.50
		50	$ 130.02

Description

General part information

ERA.3Y Series

1 Position Circular Connector Receptacle, Female Sockets Solder Cup
