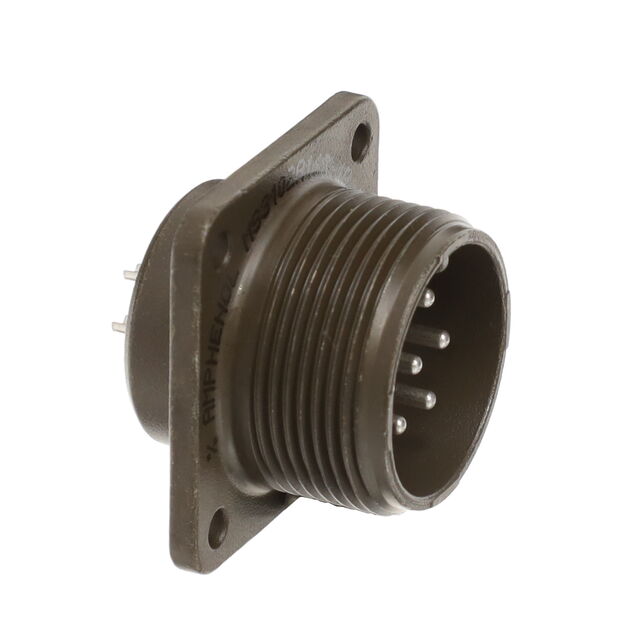

MS3102A16S-1P

Active

Amphenol Industrial Operations

CONN RCPT MALE 7P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT MALE 7P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A16S-1P

Applications	Military, Marine
Cable Opening [diameter]	22.22 mm
Cable Opening [diameter]	0.875 in
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	16S-1
Shielding	Unshielded

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Primary Material	Shell Material	Shielding	Contact Finish - Mating	Contact Material	Grade	Ingress Protection	Color	Orientation	Applications	Current Rating (Amps)	Voltage Rating	Shell Size - Insert	Qualification	Insert Material	Shell Finish	Number of Positions	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Industrial Operations MS3102A16S-4S	-55 °C	125 °C	Flange	Metal	Aluminum Alloy	Unshielded	Silver	Copper Alloy	Military	Environment Resistant	Olive Drab	N	Marine Military	13 A	900 VAC 1250 VDC	16S-4	MIL-DTL-5015	Neoprene	Olive Drab Chromate over Cadmium	2	Receptacle Female Sockets
Amphenol Industrial Operations MS3102A16S-5P	-55 °C	125 °C	Flange	Metal	Aluminum Alloy	Unshielded	Silver	Copper Alloy			Olive Drab	N	Marine Military			16S-5	MIL-DTL-5015	Neoprene	Olive Drab Chromate over Cadmium		Male Pins Receptacle	22.22 mm	0.875 in
Amphenol Industrial Operations MS3102A16S-1P	-55 °C	125 °C	Flange	Metal	Aluminum Alloy	Unshielded	Silver	Copper Alloy			Olive Drab	N	Marine Military			16S-1	MIL-5015	Neoprene	Olive Drab Chromate over Cadmium	7	Male Pins Receptacle	22.22 mm	0.875 in
Amphenol Industrial Operations MS3102A16S-6S
Amphenol Industrial Operations MS3102A16-13P	-55 °C	125 °C	Flange	Metal	Aluminum Alloy	Unshielded	Silver	Copper Alloy			Olive Drab	N	Marine Military				MIL-5015	Neoprene	Olive Drab Chromate over Cadmium	2	Male Pins Receptacle	22.22 mm	0.875 in	16	13

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
