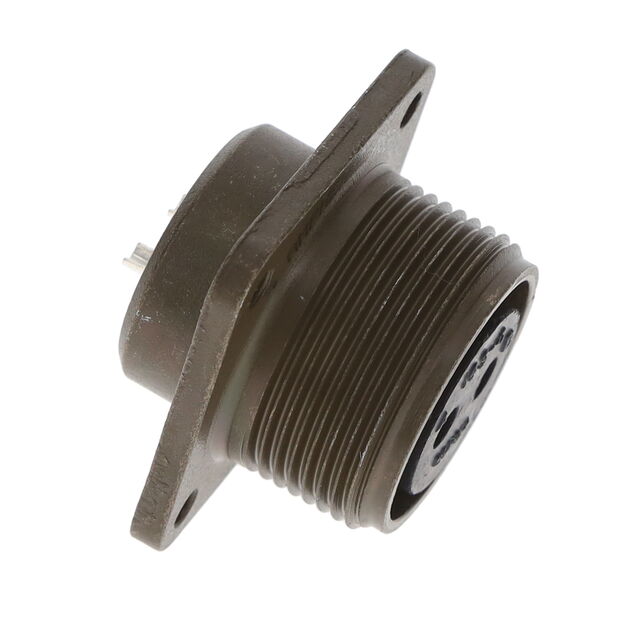

MS3102A16S-4S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A16S-4S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	16S-4
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Primary Material	Shell Material	Shielding	Contact Finish - Mating	Contact Material	Grade	Ingress Protection	Color	Orientation	Applications	Current Rating (Amps)	Voltage Rating	Shell Size - Insert	Qualification	Insert Material	Shell Finish	Number of Positions	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Industrial Operations MS3102A16S-4S	-55 °C	125 °C	Flange	Metal	Aluminum Alloy	Unshielded	Silver	Copper Alloy	Military	Environment Resistant	Olive Drab	N	Marine Military	13 A	900 VAC 1250 VDC	16S-4	MIL-DTL-5015	Neoprene	Olive Drab Chromate over Cadmium	2	Receptacle Female Sockets
Amphenol Industrial Operations MS3102A16S-5P	-55 °C	125 °C	Flange	Metal	Aluminum Alloy	Unshielded	Silver	Copper Alloy			Olive Drab	N	Marine Military			16S-5	MIL-DTL-5015	Neoprene	Olive Drab Chromate over Cadmium		Male Pins Receptacle	22.22 mm	0.875 in
Amphenol Industrial Operations MS3102A16S-1P	-55 °C	125 °C	Flange	Metal	Aluminum Alloy	Unshielded	Silver	Copper Alloy			Olive Drab	N	Marine Military			16S-1	MIL-5015	Neoprene	Olive Drab Chromate over Cadmium	7	Male Pins Receptacle	22.22 mm	0.875 in
Amphenol Industrial Operations MS3102A16S-6S
Amphenol Industrial Operations MS3102A16-13P	-55 °C	125 °C	Flange	Metal	Aluminum Alloy	Unshielded	Silver	Copper Alloy			Olive Drab	N	Marine Military				MIL-5015	Neoprene	Olive Drab Chromate over Cadmium	2	Male Pins Receptacle	22.22 mm	0.875 in	16	13

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
