RB53P06G16C

Active

Serpac

BOX PLSTC CLR/GRAY 4.72"LX3.15"W

Search across all available documentation for this part.

Active

Serpac

BOX PLSTC CLR/GRAY 4.72"LX3.15"W

Technical Specifications

Parameters and characteristics for this part

Specification	RB53P06G16C

Color	Clear, Gray Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	2.165 in
Height [z]	55 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	3.152 in
Size / Dimension [y]	80.06 mm
Thickness	3 mm
Thickness	0.118 in

Part	Design	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Color	Height [z]	Height [z]	Material Flammability Rating	Ratings	Container Type
Serpac RB53P06G16C	Cover Included	3 mm	0.118 in	120 mm	3.152 in	4.724 "	80.06 mm	Plastic Polycarbonate	Clear Gray Cover/Door	2.165 in	55 mm	UL94 V-0	IP67 NEMA 4	Box
Serpac RB53P06G16G	Cover Included	3 mm	0.118 in	120 mm	3.152 in	4.724 "	80.06 mm	Plastic Polycarbonate	Gray	2.165 in	55 mm	UL94 V-0	IP67 NEMA 4	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.06

General part information

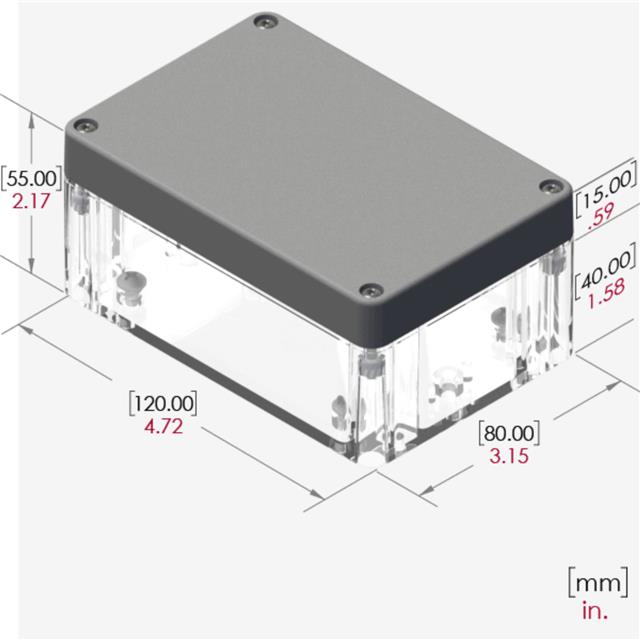

Box Plastic, Polycarbonate Clear, Gray Cover/Door Cover Included 4.724" L x 3.152" W (120.00mm x 80.06mm) X 2.165" (55.00mm)

Technical documentation and resources

No documents available
