RB53P06G16G
ActiveSerpac
BOX PLASTIC GRY 4.72"L X 3.152"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RB53P06G16G
ActiveSerpac
BOX PLASTIC GRY 4.72"L X 3.152"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB53P06G16G |
|---|---|
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Height [z] | 2.165 in |
| Height [z] | 55 mm |
| Material | Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | IP67, NEMA 4 |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [x] | 4.724 " |
| Size / Dimension [y] | 3.152 in |
| Size / Dimension [y] | 80.06 mm |
| Thickness | 3 mm |
| Thickness | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.55 | |
| 5 | $ 18.12 | |||
| 10 | $ 17.36 | |||
| 25 | $ 16.81 | |||
| 50 | $ 16.58 | |||
| 100 | $ 16.44 | |||
| 250 | $ 16.35 | |||
| 500 | $ 16.31 | |||
Description
General part information
RB53P06G Series

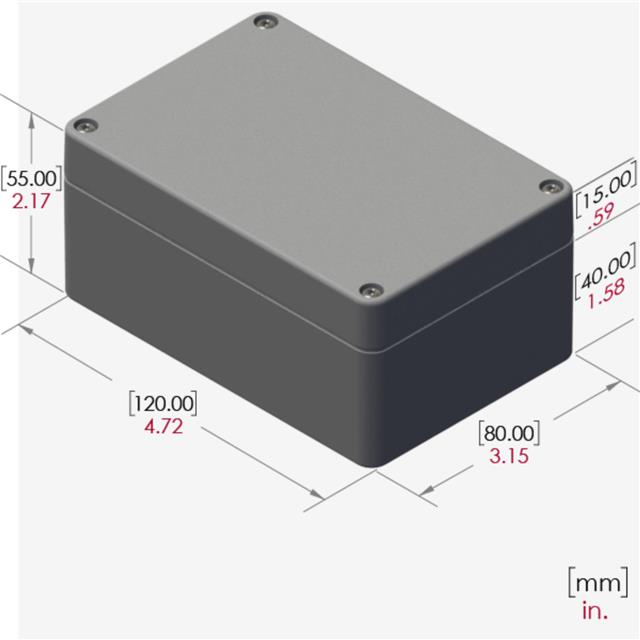

Box Plastic, Polycarbonate Gray Cover Included 4.724" L x 3.152" W (120.00mm x 80.06mm) X 2.165" (55.00mm)
Documents
Technical documentation and resources
