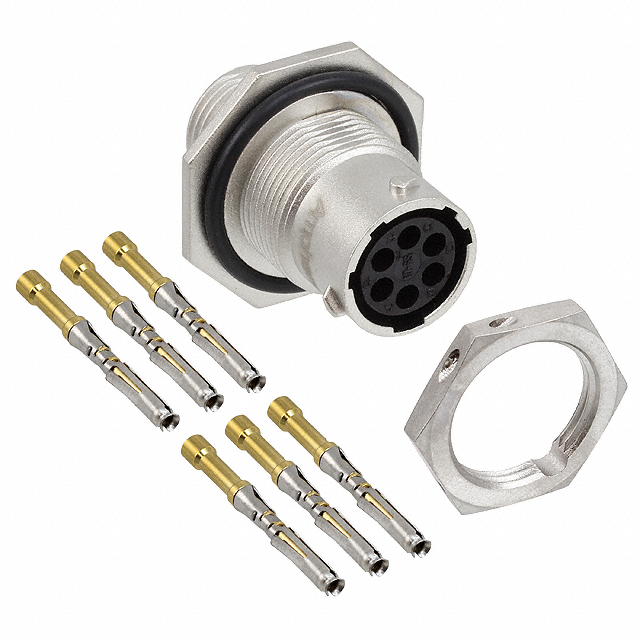

RT0W7106SNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W7106SNH-K

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	10-6
Termination	Crimp
Voltage Rating	150 VAC

Part	Shielding	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Connector Type	Note	Contact Shape	Material Flammability Rating	Housing Color	Insert Material	Contact Size	Shell Size - Insert	Contact Type	Mounting Feature	Ingress Protection	Number of Positions	Orientation	Shell Material	Fastening Type	Includes	Color	Current Rating (Amps)	Contact Finish Thickness - Mating	Voltage Rating	Primary Material	Termination	Contact Finish - Mating
Amphenol Sine Systems Corp RT0W7106PNHEC03
Amphenol Sine Systems Corp RT0W7106PNH	Shielded	For Male Pins	-40 °C	105 ░C	Nickel	Receptacle Housing	Contacts Not Included	Circular	UL94 V-0	Silver	Thermoplastic	20	10-6	Crimp	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	6	N	Zinc Alloy	Bayonet Lock
Amphenol Sine Systems Corp RT0W7106SNH03	Shielded	For Female Sockets	-40 °C	125 °C	Nickel	Receptacle Housing	Contacts Not Included	Circular	UL94 V-0	Silver	Thermoplastic	20	10-6	Crimp	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	6	N	Zinc Alloy	Bayonet Lock	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RT0W7106SNH-K			-40 °C	105 ░C	Nickel	Receptacle Female Sockets							10-6		Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	6	N	Zinc Die Cast	Bayonet Lock		Silver	7.5 A	Flash	150 VAC	Metal	Crimp	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Crimp
