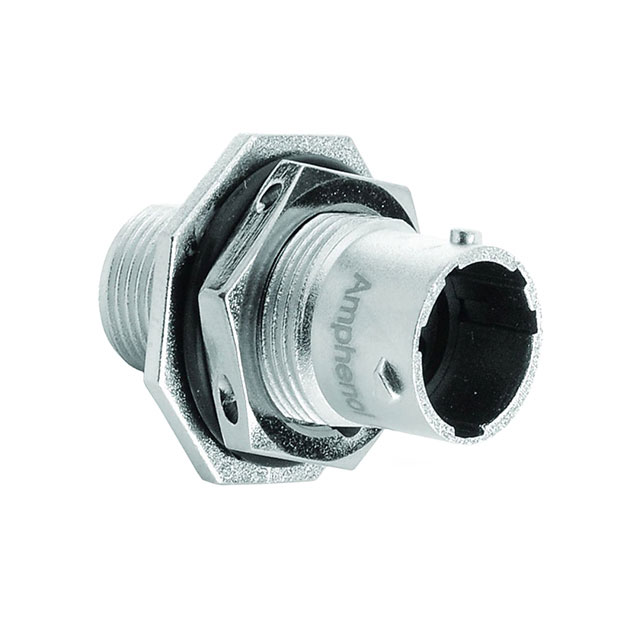

RT0W7106PNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 6POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 6POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W7106PNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-6
Shielding	Shielded
Type	For Male Pins

Part	Shielding	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Connector Type	Note	Contact Shape	Material Flammability Rating	Housing Color	Insert Material	Contact Size	Shell Size - Insert	Contact Type	Mounting Feature	Ingress Protection	Number of Positions	Orientation	Shell Material	Fastening Type	Includes	Color	Current Rating (Amps)	Contact Finish Thickness - Mating	Voltage Rating	Primary Material	Termination	Contact Finish - Mating
Amphenol Sine Systems Corp RT0W7106PNHEC03
Amphenol Sine Systems Corp RT0W7106PNH	Shielded	For Male Pins	-40 °C	105 ░C	Nickel	Receptacle Housing	Contacts Not Included	Circular	UL94 V-0	Silver	Thermoplastic	20	10-6	Crimp	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	6	N	Zinc Alloy	Bayonet Lock
Amphenol Sine Systems Corp RT0W7106SNH03	Shielded	For Female Sockets	-40 °C	125 °C	Nickel	Receptacle Housing	Contacts Not Included	Circular	UL94 V-0	Silver	Thermoplastic	20	10-6	Crimp	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	6	N	Zinc Alloy	Bayonet Lock	1 Connector 1 Gasket 1 Nut 1 O-Ring
Amphenol Sine Systems Corp RT0W7106SNH-K			-40 °C	105 ░C	Nickel	Receptacle Female Sockets							10-6		Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	6	N	Zinc Die Cast	Bayonet Lock		Silver	7.5 A	Flash	150 VAC	Metal	Crimp	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.29

General part information

6 Position Circular Connector Receptacle Housing Panel Mount
