A22035-001

Active

Omnetics

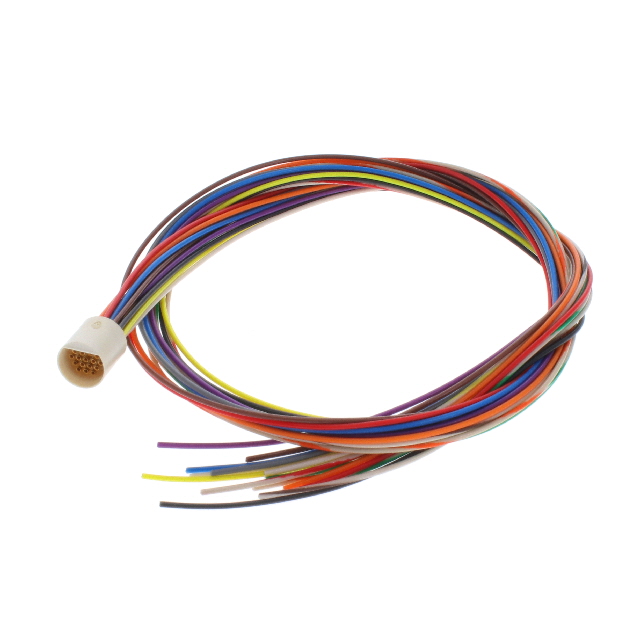

CIRC CBL 16POS RCPT TO WIRE 1.5'

Search across all available documentation for this part.

Active

Omnetics

CIRC CBL 16POS RCPT TO WIRE 1.5'

Technical Specifications

Parameters and characteristics for this part

Specification	A22035-001

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	16
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polytetrafluoroethylene (PTFE)
Cable Type	Individual
Color	Multiple
Length [x]	457.2 mm
Length [x]	1.5 ft
Shielding	Unshielded

Part	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Orientation [custom]	2nd Connector Type	Color	Shielding	1st Connector Type	Assembly Configuration	1st Connector Gender	Cable Material	1st Connector Number of Positions	Cable Type	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insert Material	Number of Positions	Primary Material	Orientation	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Material
Omnetics A22035-001	All	Free Hanging (In-Line)	457.2 mm	1.5 ft	Keyed	Wire Leads	Multiple	Unshielded	Receptacle	Standard	Female Sockets	Polytetrafluoroethylene (PTFE)	16	Individual
Omnetics A22033-001							Natural	Unshielded							Copper Alloy	3 A	1.27 µm	50 µin	Push-Pull	Liquid Crystal Polymer (LCP)	16	Plastic	Keyed	Receptacle Female Sockets	Free Hanging (In-Line)	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.50' (457.20mm)
