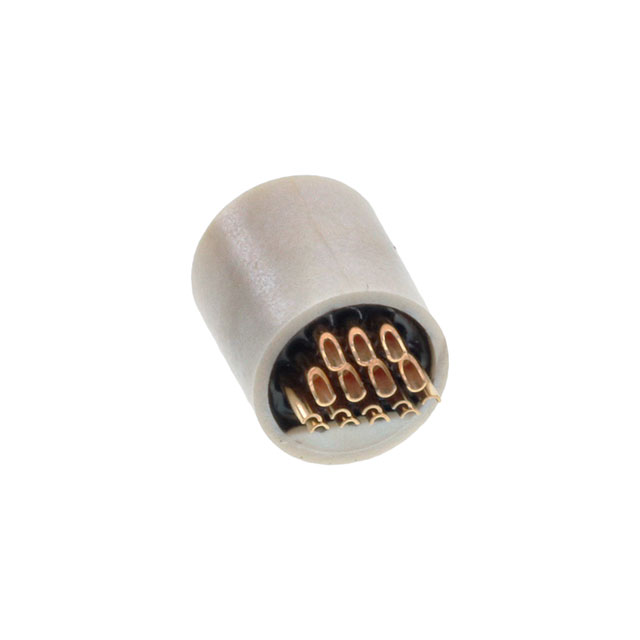

A22033-001

Active

Omnetics

CONN RCPT FMALE 16P SOLDER CUP

Search across all available documentation for this part.

Active

Omnetics

CONN RCPT FMALE 16P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A22033-001

Color	Natural
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shielding	Unshielded

Part	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Orientation [custom]	2nd Connector Type	Color	Shielding	1st Connector Type	Assembly Configuration	1st Connector Gender	Cable Material	1st Connector Number of Positions	Cable Type	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insert Material	Number of Positions	Primary Material	Orientation	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Material
Omnetics A22035-001	All	Free Hanging (In-Line)	457.2 mm	1.5 ft	Keyed	Wire Leads	Multiple	Unshielded	Receptacle	Standard	Female Sockets	Polytetrafluoroethylene (PTFE)	16	Individual
Omnetics A22033-001							Natural	Unshielded							Copper Alloy	3 A	1.27 µm	50 µin	Push-Pull	Liquid Crystal Polymer (LCP)	16	Plastic	Keyed	Receptacle Female Sockets	Free Hanging (In-Line)	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
