DF33C-3P-3.3DSA(24)

Active

Hirose Electric USA, Inc.

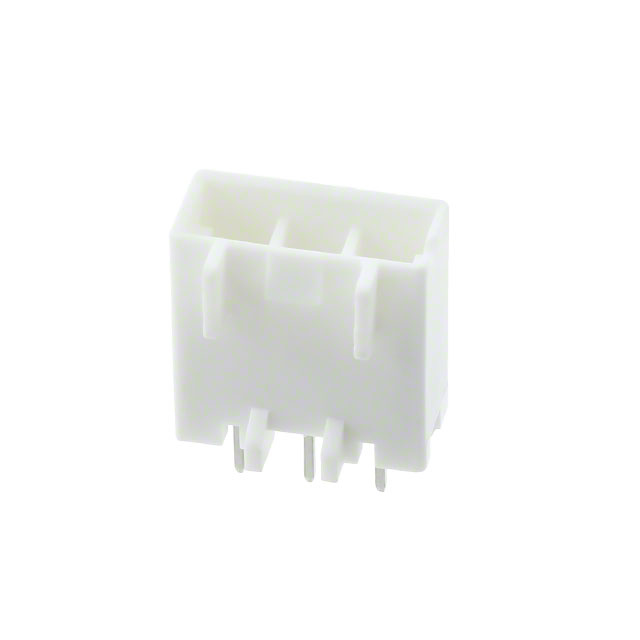

CONN HEADER VERT 3POS 3.3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF33C-3P-3.3DSA(24)

DF33C-3P-3.3DSA(24)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 3POS 3.3MM

Deep-Dive with AI

DocumentsDatasheet DF33C-3P-3.3DSA(24)

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF33C-3P-3.3DSA(24)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	White
Insulation Height	11.5 mm
Insulation Height	0.453 in
Insulation Material	Polybutylene Terephthalate (PBT)
Mated Stacking Heights	17.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	3.3 mm
Pitch - Mating	0.13 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	500 V

DF33C Series

Part	Accessory Type	Number of Positions	For Use With/Related Products	Contact Termination	Pitch [x]	Pitch [x]	Fastening Type	Insulation Material	Note	Number of Rows	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Row Spacing	Row Spacing	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Style	Voltage Rating	Contact Shape	Material Flammability Rating	Features	Number of Positions Loaded	Contact Material	Termination	Mated Stacking Heights	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)
Hirose Electric USA, Inc. DF33C-4RS-3.3	Retainer	4	DF33C Series
Hirose Electric USA, Inc. DF33C-4S-3.3C		4		Crimp	0.13 in	3.3 mm	Latch Lock	Polybutylene Terephthalate (PBT)	Contacts Not Included	1	Female Socket	Free Hanging (In-Line)	-35 °C	85 °C	White	Receptacle
Hirose Electric USA, Inc. DF33C-2RS-3.3	Retainer	2	DF33C Series
Hirose Electric USA, Inc. DF33C-6DS-3.3C		6		Crimp	0.13 in	3.3 mm	Latch Lock	Polybutylene Terephthalate (PBT)	Contacts Not Included	2	Female Socket	Free Hanging (In-Line)	-35 °C	85 °C	White	Receptacle	0.228 in	5.8 mm
Hirose Electric USA, Inc. DF33C-5RS-3.3	Retainer		DF33C Series
Hirose Electric USA, Inc. DF33C-6S-3.3C		6		Crimp	0.13 in	3.3 mm	Latch Lock	Polybutylene Terephthalate (PBT)	Contacts Not Included	1	Female Socket	Free Hanging (In-Line)	-35 °C	85 °C	White	Receptacle
Hirose Electric USA, Inc. DF33C-6RDS-3.3	Retainer	6	DF33C Series
Hirose Electric USA, Inc. DF33C-12DP-3.3DSA(24)		12					Locking Ramp	Nylon Polyamide (PA)		2	Male Pin	Through Hole	-35 °C	85 °C		Header			Shrouded - 4 Wall	0.118 in	3 mm	Beige	3.3 mm	0.13 in	11.5 mm	0.453 in	Board to Cable/Wire	500 V	Square	UL94 V-0	Board Guide	All	Brass	Solder	17.6 mm	5.8 mm	0.228 in	Tin	1 µm	39.4 µin
Hirose Electric USA, Inc. DF33C-12RDS-3.3	Retainer	12	DF33C Series
Hirose Electric USA, Inc. DF33C-3P-3.3DSA(24)							Locking Ramp	Polybutylene Terephthalate (PBT)		1	Male Pin	Through Hole	-35 °C	85 °C		Header			Shrouded - 4 Wall	0.118 in	3 mm	White	3.3 mm	0.13 in	11.5 mm	0.453 in	Board to Cable/Wire	500 V	Square	UL94 V-0	Board Guide	All	Brass	Solder	17.6 mm			Tin	1 µm	39.4 µin	5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.31
		10	$ 0.26
		95	$ 0.22
		475	$ 0.20
		950	$ 0.19
		4940	$ 0.17
		10070	$ 0.16

Description

General part information

DF33C Series

Connector Header Through Hole 3 position 0.130" (3.30mm)

Documents

Technical documentation and resources

Datasheet

DF33C-3P-3.3DSA(24)

Datasheet
